Question: a) b) c) d) Explain TWO (2) differences between analog-to-digital converters (ADCs) and digital-to-analog converters (DACs). (CLO1, C2) Find the output from an 8-bit

a) b) c) d) Explain TWO (2) differences between analog-to-digital converters (ADCs)

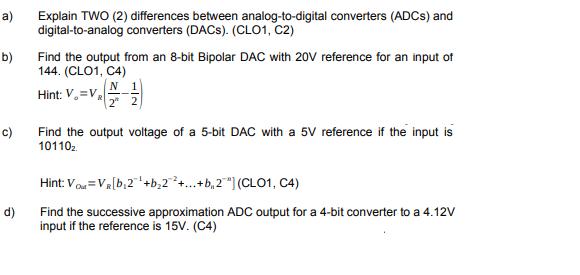

a) b) c) d) Explain TWO (2) differences between analog-to-digital converters (ADCs) and digital-to-analog converters (DACs). (CLO1, C2) Find the output from an 8-bit Bipolar DAC with 20V reference for an input of 144. (CLO1, C4) N Hint: V.=V. 1 Find the output voltage of a 5-bit DAC with a 5V reference if the input is 10110 Hint: Vo=V[b2 +b2+...+b2"] (CLO1, C4) Find the successive approximation ADC output for a 4-bit converter to a 4.12V input if the reference is 15V. (C4)

Step by Step Solution

★★★★★

3.48 Rating (145 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

Answer Solh A device which converts an analog continuous signal into dig... View full answer

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
