Question: . A barge is pulled by two ropes with tensions P and Q as shown. If P 250 lb and Q = 500 lb, determine

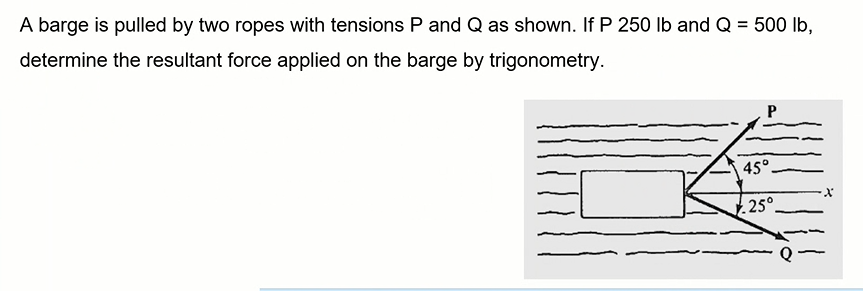

A barge is pulled by two ropes with tensions P and Q as shown. If P 250 lb and Q = 500 lb, determine the resultant force applied on the barge by trigonometry

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mathematics Questions!

2 . 7 A stake is pulled out of the ground by means of two ropes as shown. ( a ) Knowing that = 3 0 , determine by trigonometry the magnitude of the force P so that the resultant force exerted on the...

1) A steel tank is to be positioned in an excavation. Knowing that a = 20", determine by trigonometry (a) the required magnitude of the force P if the resultant R of the two forces applied at A is to...

1. Determine the values of P and E to maintain the equilibrium of the forces. 100 lb 9. Two men are just able to lift a 300 kg weight 2. Determine the resultant force. with a crowbar when the fulcrum...

For the hook support of Problem 2.3, using trigonometry and knowing that the magnitude of P is 25 lb, determine (a) The required magnitude of the force Q if the resultant R of the two forces applied...

Review lecture, Art of Case Briefing, and read SCOTUS's opinion on Dep't of Homeland Sec. v. Thuraissigiam. After, write a case brief on Dep't of Homeland Sec. v. Thuraissigiam. Because this is a...

Two forces are applied to a hook as shown. Knowing that force P = 350 lb and Ov = 20 , determine by a graphical method the magnitude of Q so that the resultant of the two forces acting on the hook is...

A 50,000-kg barge is pulled along a canal at a constant speed of 3 km/h by a heavy tractor. The towrope makes an angle of 18 with the velocity vector of the barge. The tension in the towrope is 1200...

A barge is pulled by the two tugboats shown in the figure below. One tugboat pulls on the barge with a force of magnitude 4000 units of force at 15 above the line AB (see the figure) and the other...

2.11 A barge is pulled by two tug boats. To move the barge along in the water properly, the tug boats must exert a resultant force of 5000 lb along the direction of motion of the barge. (a) First...
