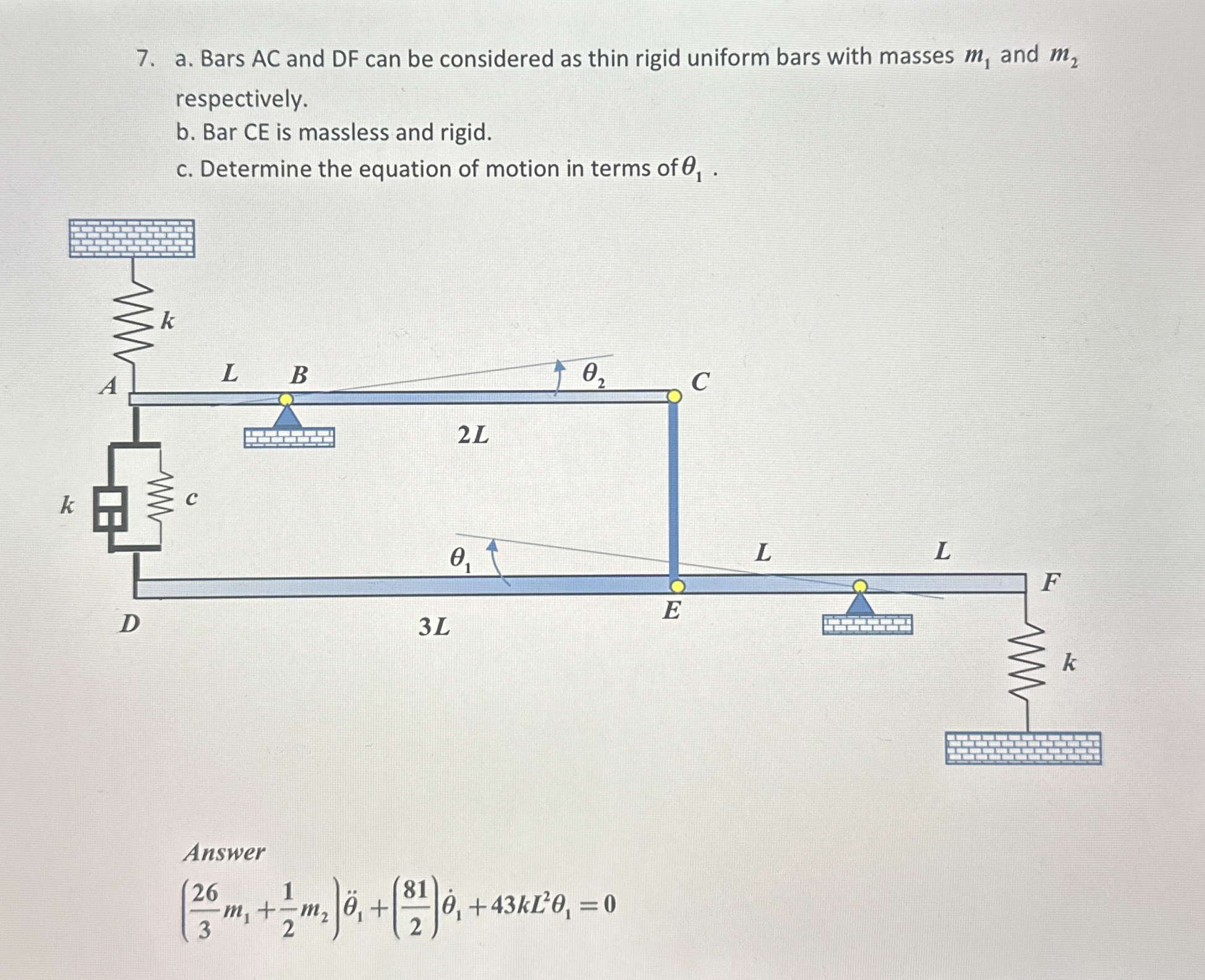

Question: a . Bars AC and DF can be considered as thin rigid uniform bars with masses m 1 and m 2 respectively. b . Bar

a. Bars AC and DF can be considered as thin rigid uniform bars with masses m1 and m2 respectively.
b. Bar CE is massless and rigid.
c. Determine the equation of motion in terms of 1.
PLEASE USE NEWTONS METHOD!!!!
Answer
(263m1+12m2)1+(812)1+43kL21=0
a . Bars AC and DF can be considered as thin

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
