Question: A beam ABC, having flexural rigidity E I = 7 5 k N * m 2 , is loaded by a force P = 1

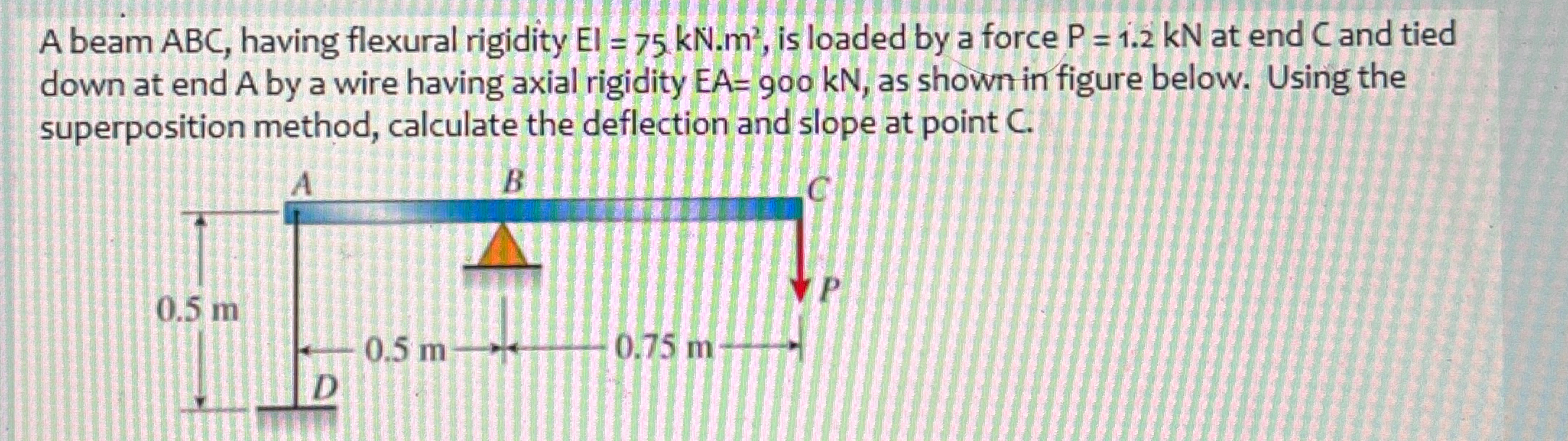

A beam ABC, having flexural rigidity EI=75kN*m2, is loaded by a force P=1.2kN at end C and tied down at end A by a wire having axial rigidity EA=900kN, as shown in figure below. Using the superposition method, calculate the deflection and slope at point C.
A beam ABC, having flexural rigidity E I = 7 5 k

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
