Question: A beam has a distributed force applied to its overhang as shown. If the square has a side length 1 0 . 9 mm and

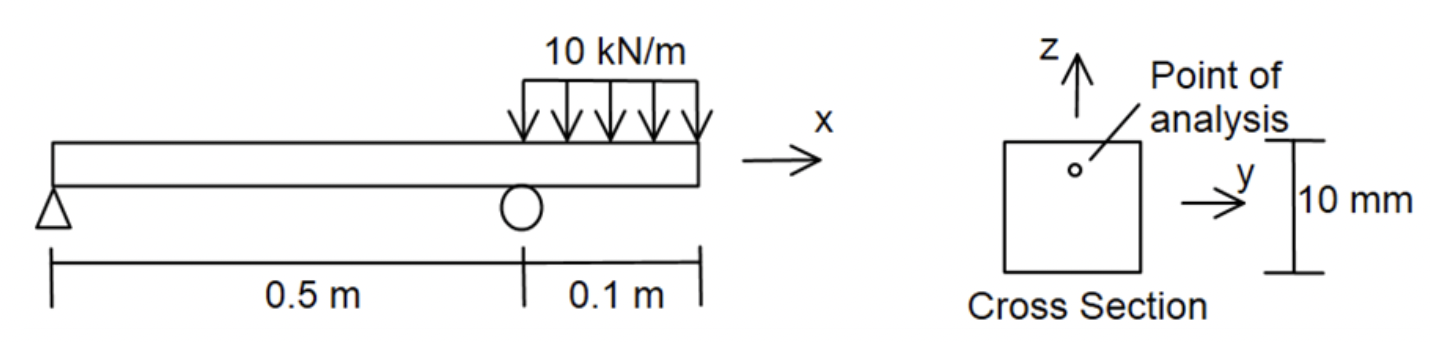

A beam has a distributed force applied to its overhang as shown. If the square has a side length 10.9 mm and the point of analysis is a distance 2.3 mm above the neutral axis with a distance of 3.9 cm from the right end of the beam, what is the bending stress at this location in units of MPa?
A beam has a distributed force applied to its

Step by Step Solution

There are 3 Steps involved in it
