Question: A beam having a T - shaped cross section ( see Fig. below ) is subjected to a vertical shear force V = 1 5

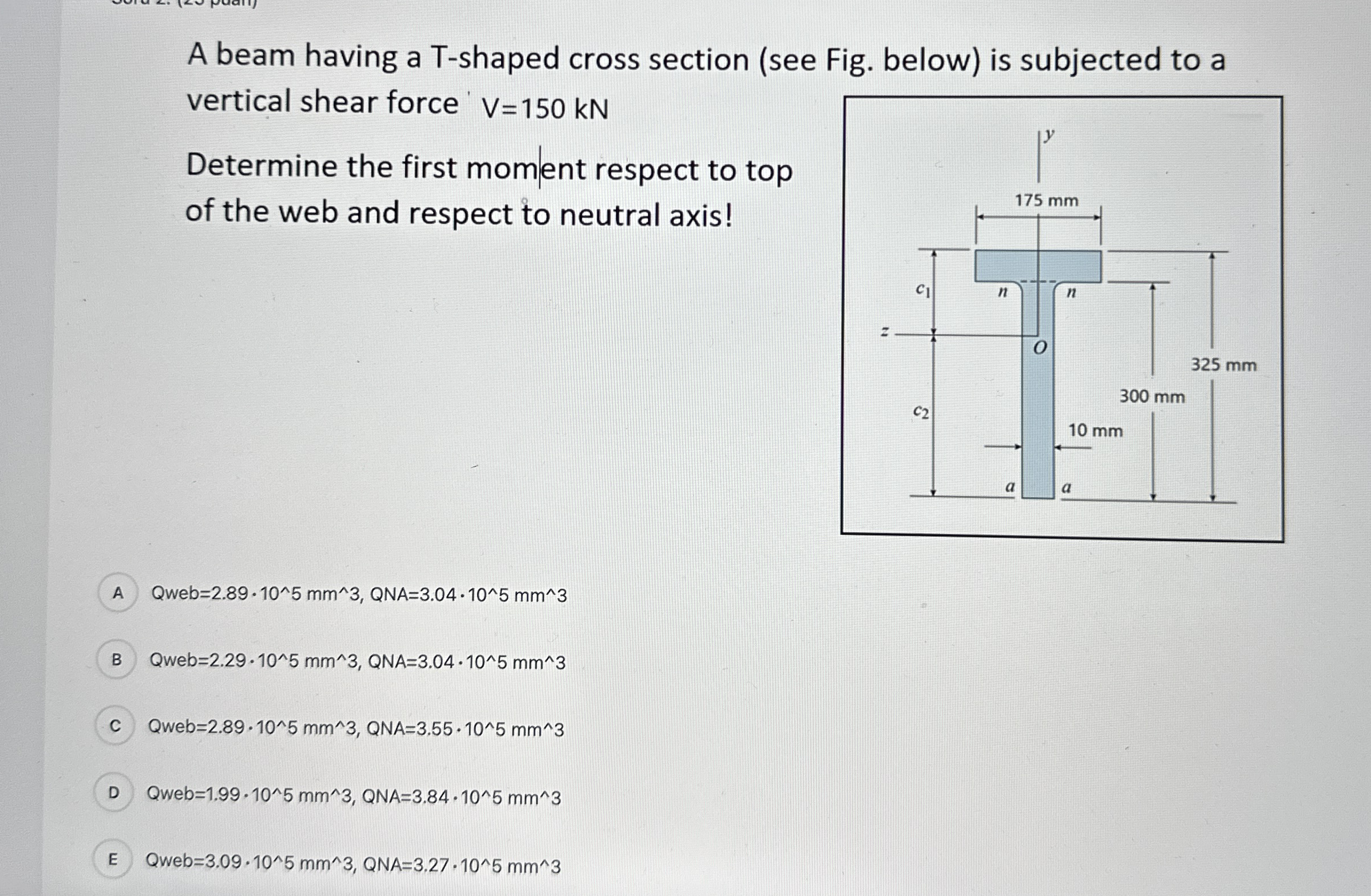

A beam having a T-shaped cross section (see Fig. below) is subjected to a vertical shear force V=150 kN
Determine the first moment respect to top of the web and respect to neutral axis!
Qweb =2.89*105mm3,QNA=3.04*105mm3
Qweb =2.29*105mm3,QNA=3.04*105mm3
Qweb =2.89*105mm3,QNA=3.55*105mm3
Qweb =1.99*105mm3,QNA=3.84*105mm3
Qweb =3.09*105mm3,QNA=3.27*105mm3
