Question: A block D is supported by two spring A C and A B . The stiffness coefficients of both springs are shown in the figure.

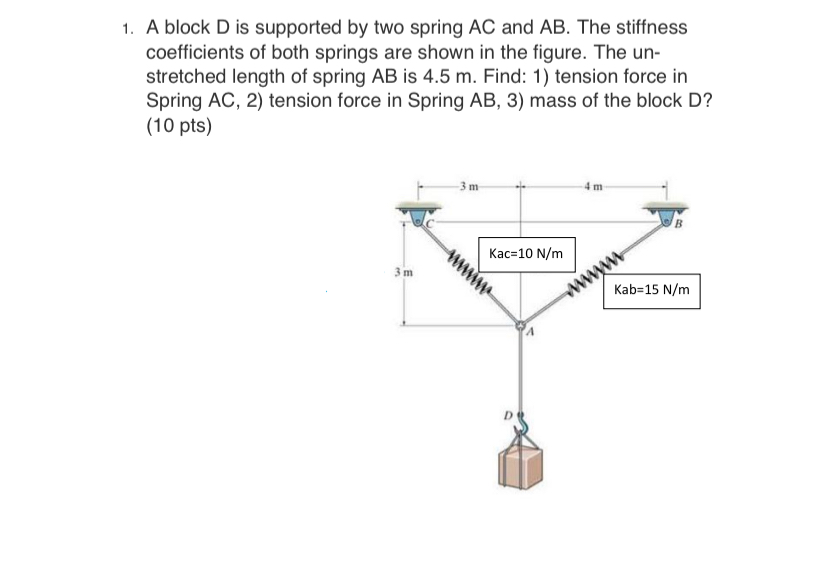

A block D is supported by two spring AC and AB. The stiffness coefficients of both springs are shown in the figure. The unstretched length of spring AB is 4.5 m . Find: 1) tension force in Spring AC,2 tension force in Spring AB,3) mass of the block D?(10 pts)
A block D is supported by two spring A C and A B

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
