Question: A brass pipe having the cross section shown has an axial load P applied 4 mm from its geometric axis. Using E = 1 2

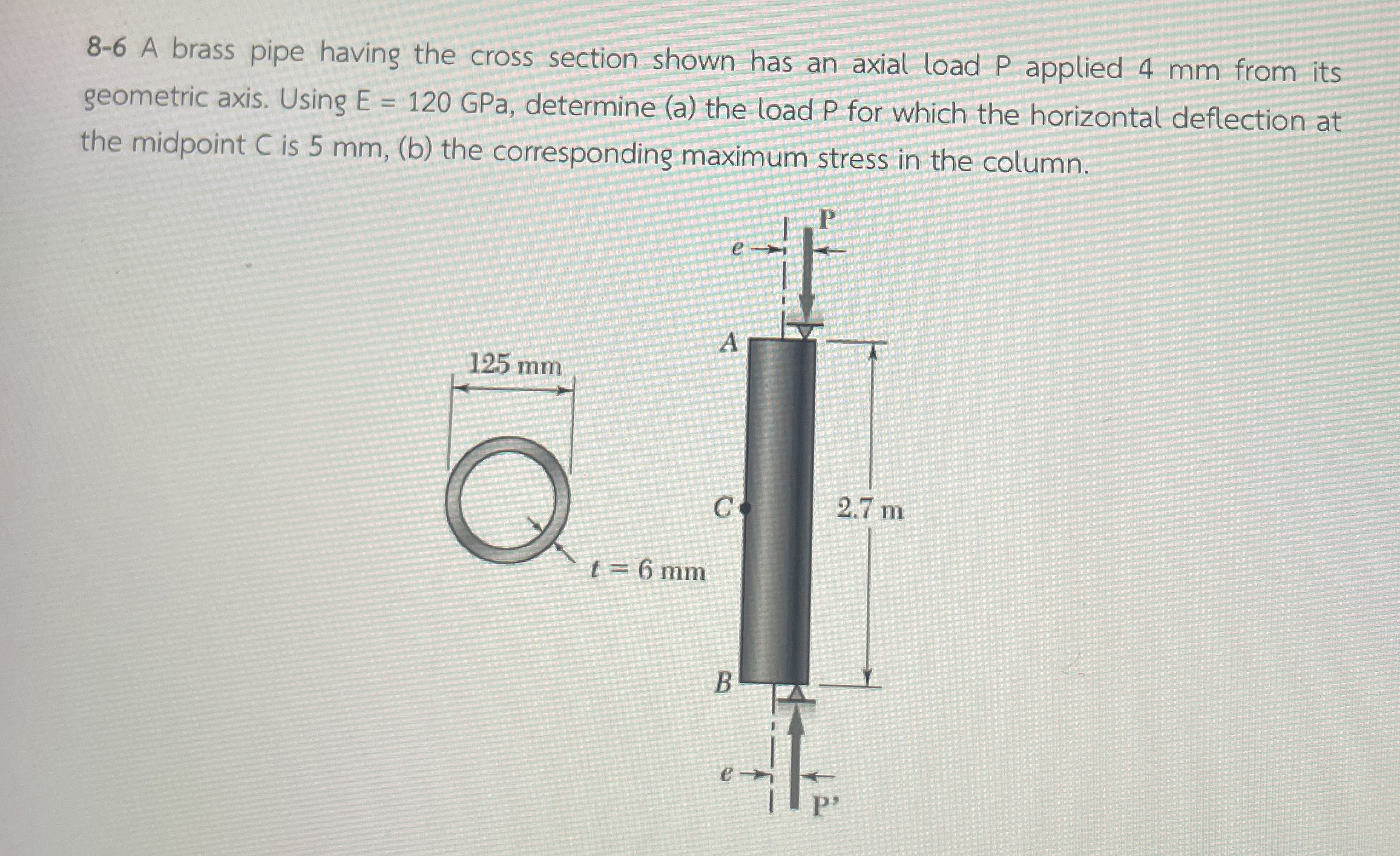

A brass pipe having the cross section shown has an axial load P applied 4 mm from its geometric axis. Using E=120GPa, determine (a) the load P for which the horizontal deflection at the midpoint C is 5 mm ,(b) the corresponding maximum stress in the column.
A brass pipe having the cross section shown has

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
