Question: A built - up beam with cross section shown is formed by nailing together four wooden boards. The maximum shear force that one nail can

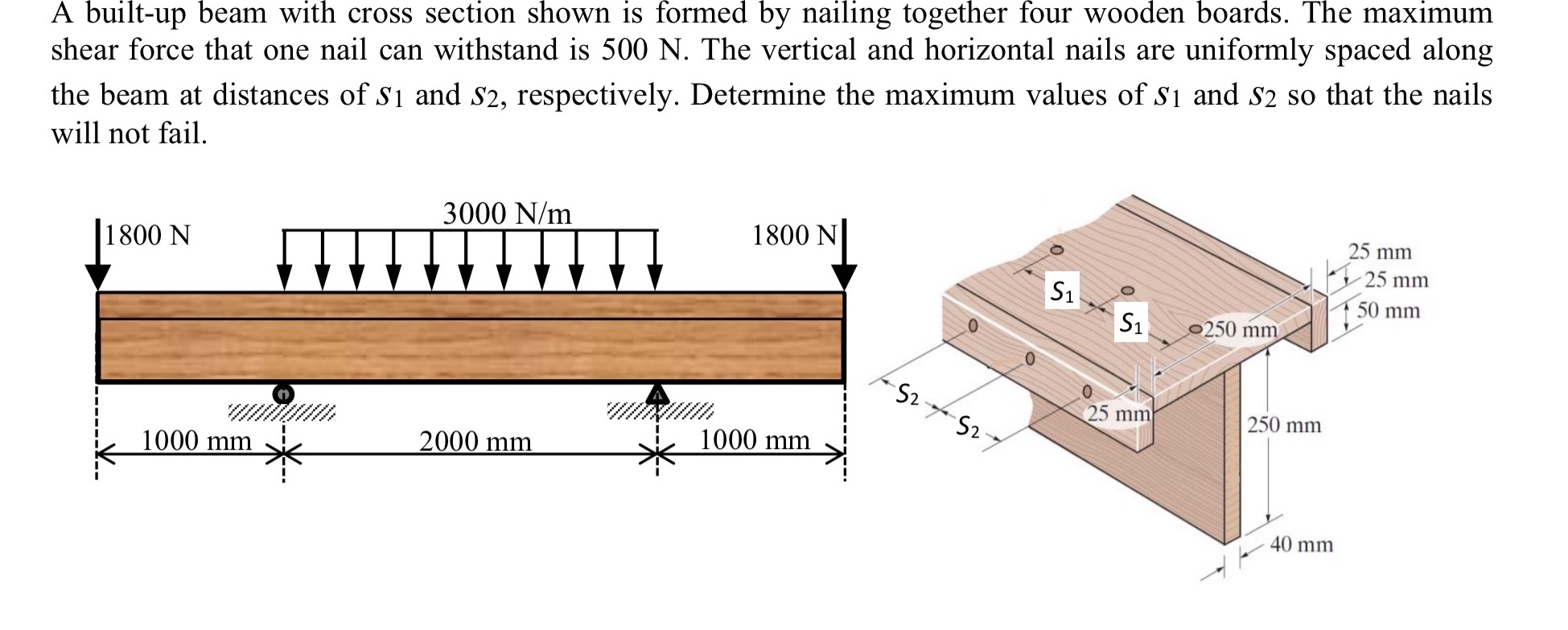

A built-up beam with cross section shown is formed by nailing together four wooden boards. The maximum shear force that one nail can withstand is 500N. The vertical and horizontal nails are uniformly spaced along the beam at distances of S1 and S2, respectively. Determine the maximum values of S1 and S2 so that the nails will not fail.
A built - up beam with cross section shown is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
