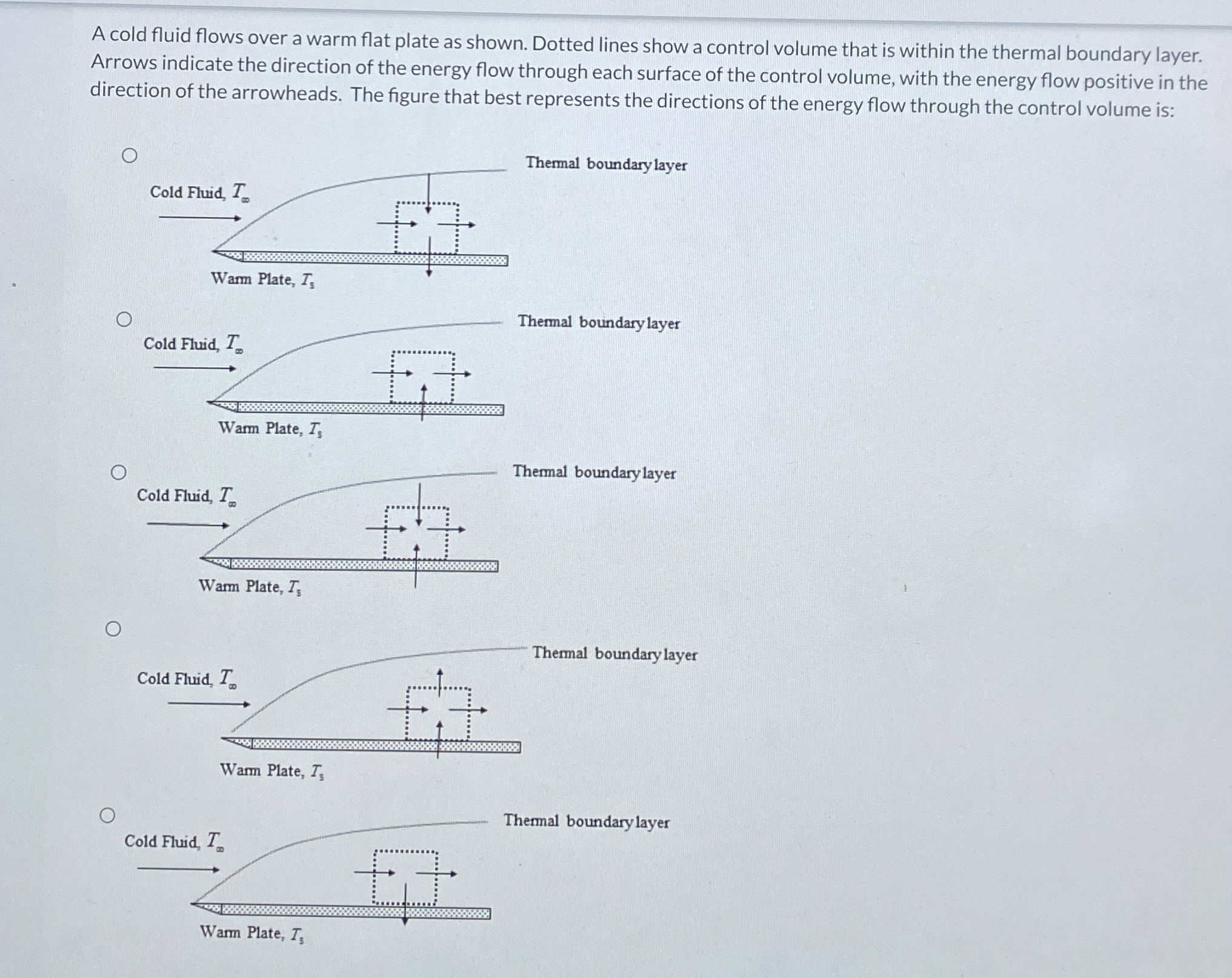

Question: A cold fluid flows over a warm flat plate as shown. Dotted lines show a control volume that is within the thermal boundary layer. Arrows

A cold fluid flows over a warm flat plate as shown. Dotted lines show a control volume that is within the thermal boundary layer.
Arrows indicate the direction of the energy flow through each surface of the control volume, with the energy flow positive in the
direction of the arrowheads. The figure that best represents the directions of the energy flow through the control volume is:
Thermal boundarylayer
Thermal boundarylayer
Thermal boundarylayer
hermal boundarylayer
Thermal boundary layer
A cold fluid flows over a warm flat plate as

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
