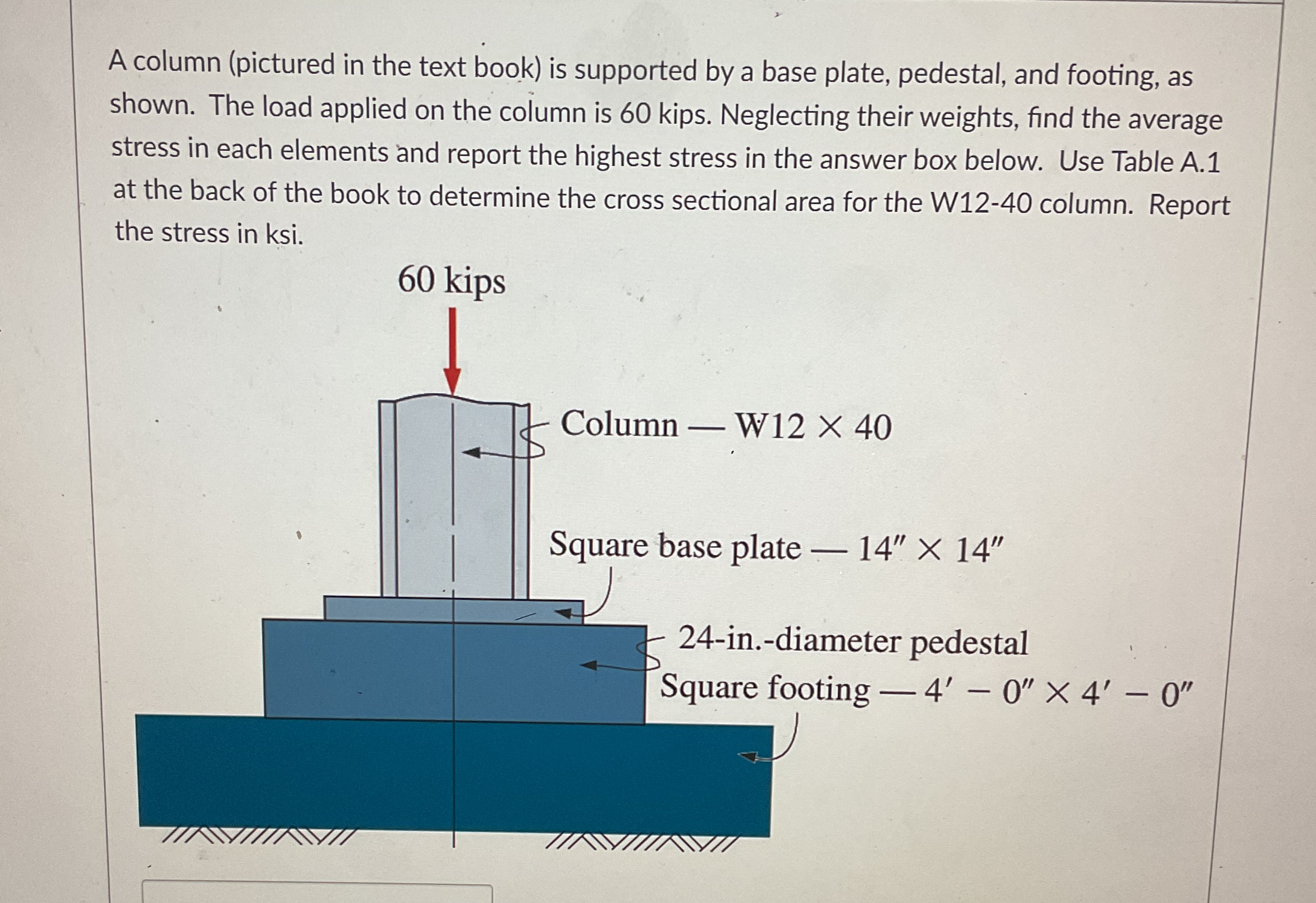

Question: A column ( pictured in the text book ) is supported by a base plate, pedestal, and footing, as shown. The load applied on the

A column (pictured in the text book) is supported by a base plate, pedestal, and footing, as
shown. The load applied on the column is 60 kips . Neglecting their weights, find the average
stress in each elements and report the highest stress in the answer box below. Use Table A.1
at the back of the book to determine the cross sectional area for the W12-40 column. Report
the stress in ksi.
A column ( pictured in the text book ) is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
