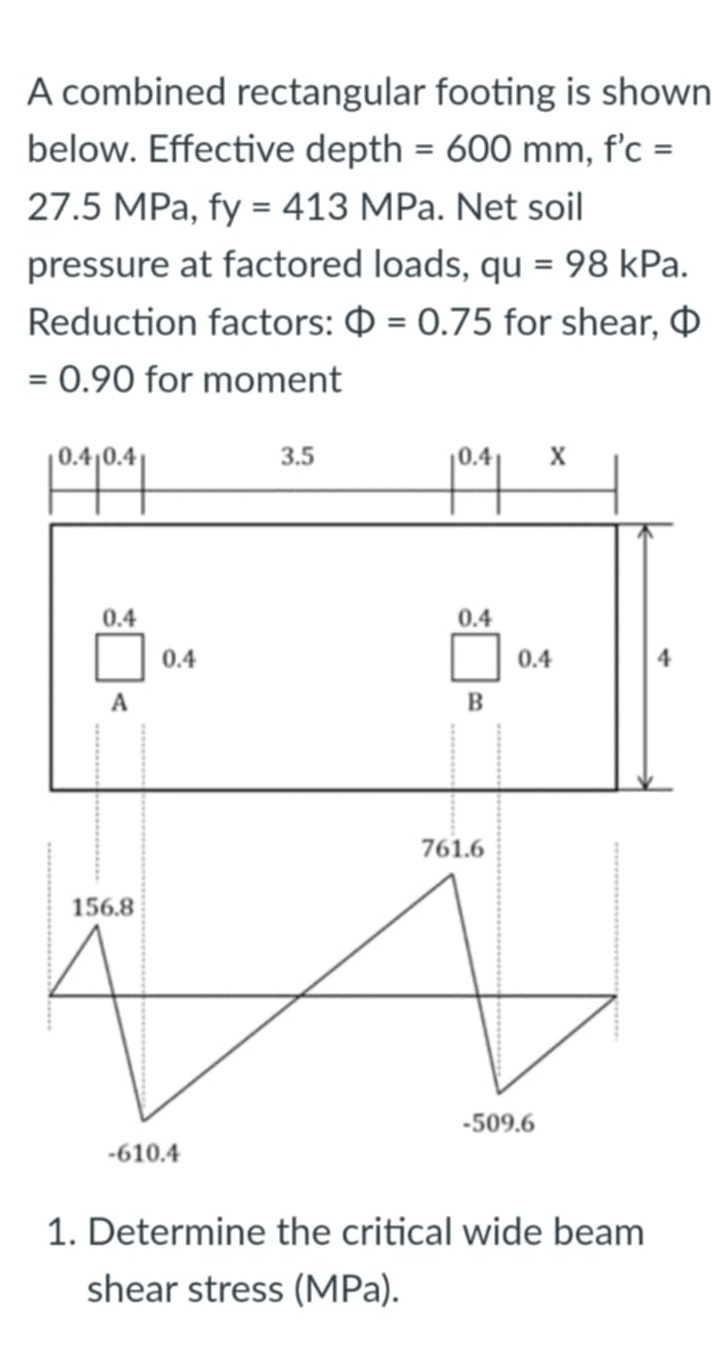

Question: A combined rectangular footing is shown below. Effective depth = 6 0 0 m m , f ' c = 2 7 . 5 MPa,

A combined rectangular footing is shown below. Effective depth =600mm,f'c=27.5 MPa, fy =413MPa. Net soil pressure at factored loads, qu =98kPa. Reduction factors: =0.75 for shear, =0.90 for moment
-610.4
Determine the critical wide beam shear stress (MPa).
A combined rectangular footing is shown below.
