Question: A composite beam ( shown in the figure below ) is constructed from a wood beam and a steel reinforcing plate. The wood and steel

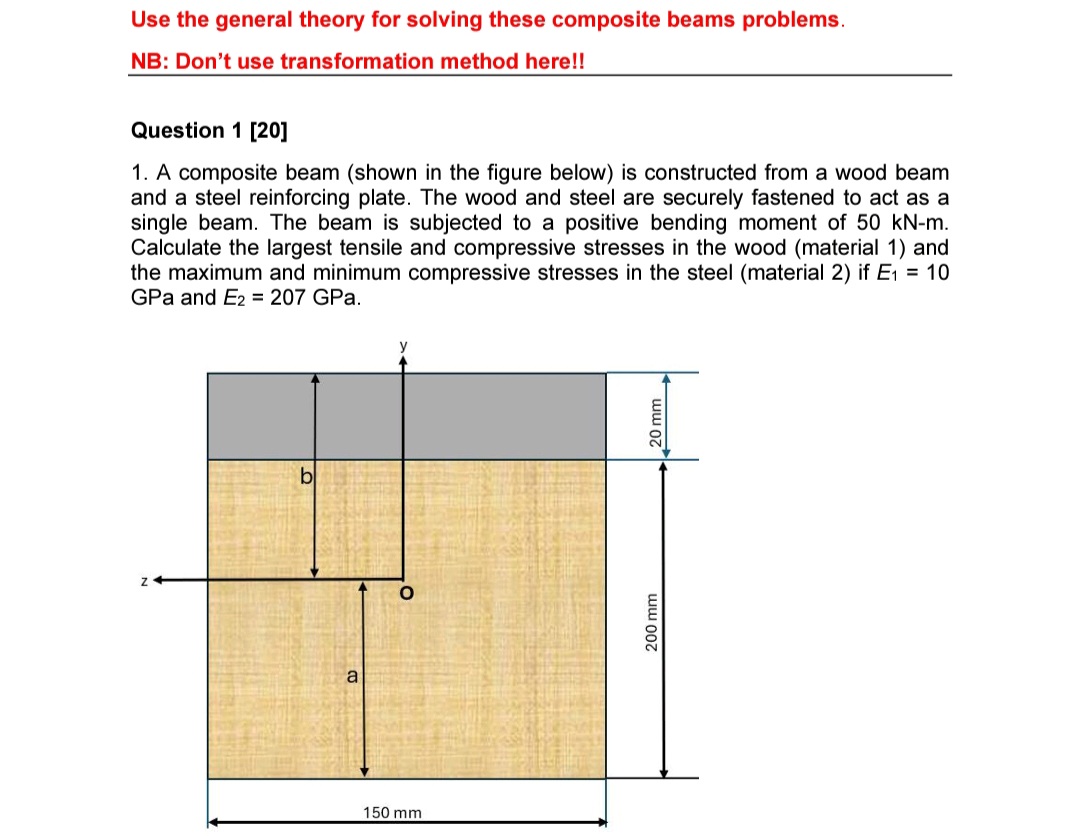

A composite beam shown in the figure below is constructed from a wood beam and a steel reinforcing plate. The wood and steel are securely fastened to act as a single beam. The beam is subjected to a positive bending moment of kNm Calculate the largest tensile and compressive stresses in the wood material and the maximum and minimum compressive stresses in the steel material if E GPa and E GPa.Use the general theory for solving these composite beams problems.
NB: Don't use transformation method here
