A. Construct a from-to chart for the facility

B. Develop a block layout design using SLP

C. Develop a block layout design using Relationship Diagramming

D. Develop a block layout using the graph-based method

E. Develop layout alternatives

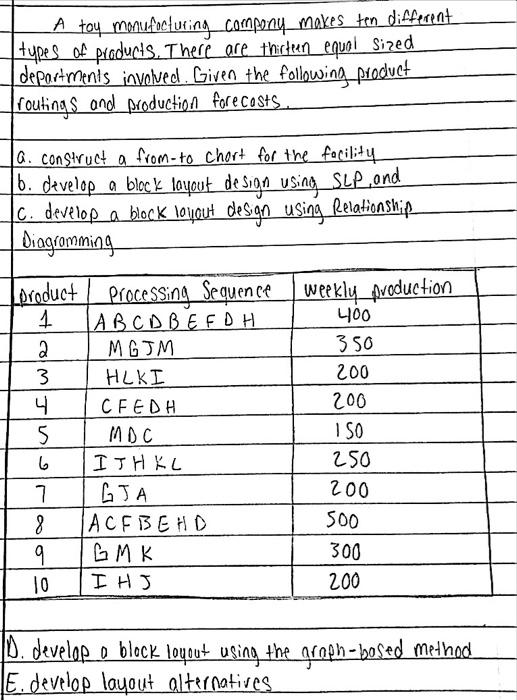

A toy monufocturing compony makes ten different types of products. There are thirten equal sized departments involved. Given the following product routings and production forecosts. a. consiruct a from-to chort for the focility b. develop a block layout design using SLP, and c. develop a block laikut design using Relationship Diagramming \begin{tabular}{|c|l|c|} \hline product & Processing Sequence & weekly production \\ \hline 1 & ABCDBEFDH & 400 \\ \hline 2 & MGJM & 350 \\ \hline 3 & HLKI & 200 \\ \hline 4 & CFEDH & 200 \\ \hline 5 & MDC & 150 \\ \hline 6 & ITHKL & 250 \\ \hline 7 & GJA & 200 \\ \hline 8 & ACFBEHD & 500 \\ \hline 9 & GMK & 300 \\ \hline 10 & IHJ & 200 \\ \hline \end{tabular} D. develop o block loyout using the araph-bosed method E. develop layout alternatives
