Question: A continuous beam is designed to support a triangular load with a maximum magnitude of W k N m ( W and P same values

A continuous beam is designed to support a triangular load with a maximum magnitude of WkNm(W and P same values as per Force method question) and PkN acting on the middle span as shown in the figure below. This beam is fully fixed at A and is supported by a pin at C,B is continuous. The length of member ABisL=3.4. El is constant for all spans.
Please use slope and deflection method to calculate the moment at the support and then develop the free body diagram and equations to draw the SFD,BMD.
Please show the value of MBC as a separate answer.

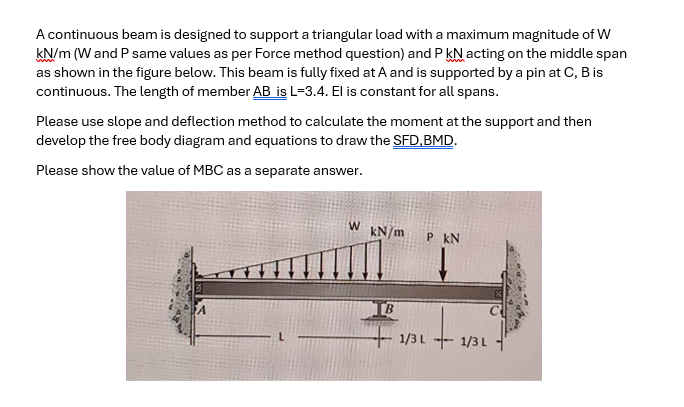

A continuous beam is designed to support a
