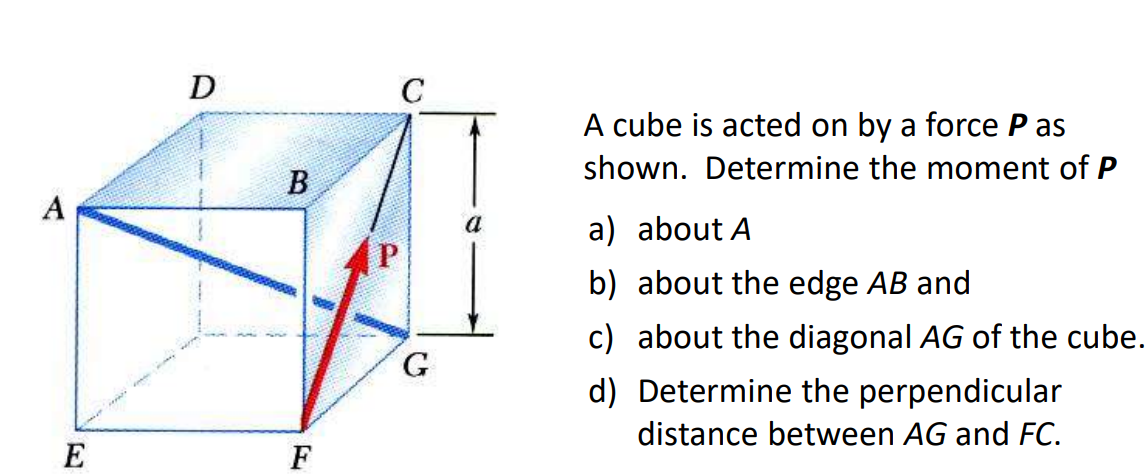

A cube is acted on by a force \(\boldsymbol{P}\) as shown. Determine the moment of \(\boldsymbol{P}\)
a) about \( A \)
b) about the edge \( A B \) and
c) about the diagonal \( A G \) of the cube.
d) Determine the perpendicular distance between \( A G \) and \( F C \).
A cube is acted on by a force \ ( \ boldsymbol {
