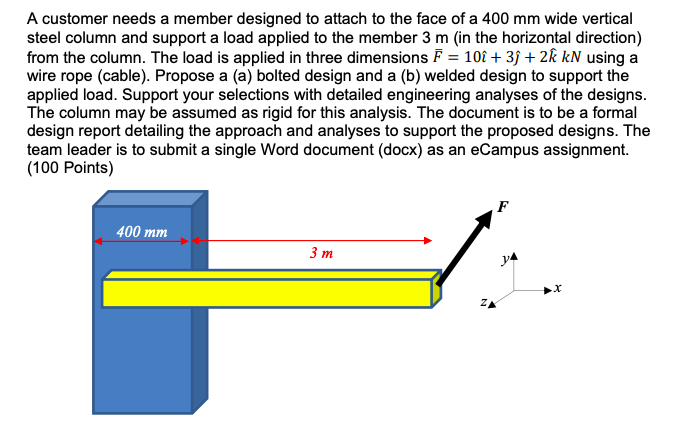

A customer needs a member designed to attach to the face of a $400$ mm wide vertical

steel column and support a load applied to the member $3$ m $($in the horizontal direction$)$

from the column. The load is applied in three dimensions $\frac{?}{\text{b}\text{a}\text{r}}(F)=10$hat$()+3$hat$()+2$hat$(k)kN$ using a

wire rope $($cable$).$ Propose a $($a$)$ bolted design and a $($b$)$ welded design to support the

applied load. Support your selections with detailed engineering analyses of the designs.

The column may be assumed as rigid for this analysis. The document is to be a formal

design report detailing the approach and analyses to support the proposed designs. The

team leader is to submit a single Word document $($docx$)$ as an eCampus assignment.

$(100$ Points$)$
