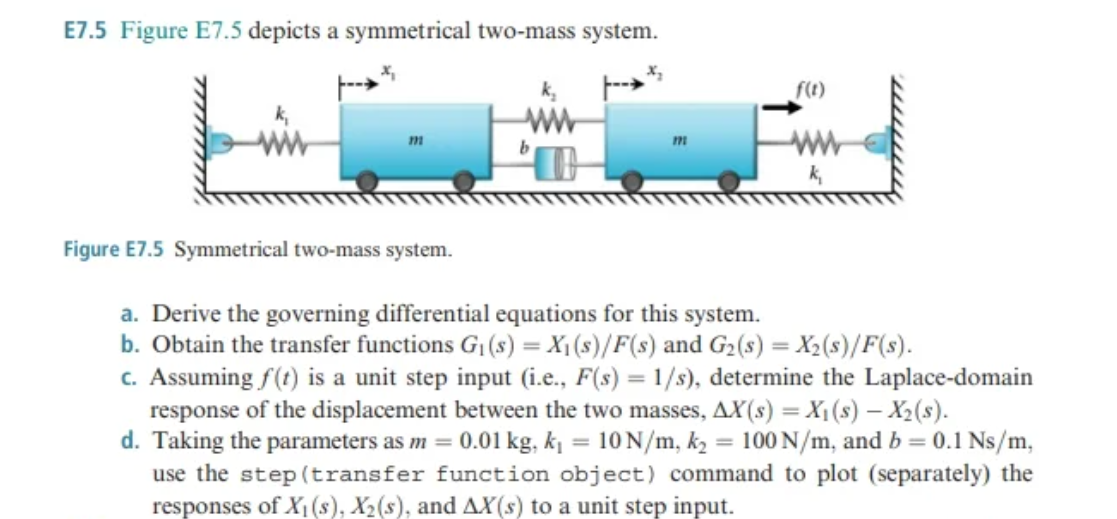

Question: a . Derive the governing differential equations for this system. b . Obtain the transfer functions G _ ( 1 ) ( s ) =

a. Derive the governing differential equations for this system.
b. Obtain the transfer functions G_(1)(s)=x_(1)(s)/(F)(s) and G_(2)(s)=x_(2)(s)/(F)(s).
c. Assuming f(t)F(s)=(1)/(s)\Delta x(s)=x_(1)(s)-x_(2)(s).
d. Taking the parameters as m=0.01kg,k_(1)=10(N)/(m),k_(2)=100(N)/(m), and b=0.1N(s)/(m),
use the step(transfer function object) command to plot (separately) the
responses of x_(1)(s),x_(2)(s), and \Delta x(s) to a unit step input.
a . Derive the governing differential equations

Step by Step Solution

There are 3 Steps involved in it
