Question: a . Determine R ( Th ) and E ( Th ) for the network external to the 2 kOmega resistor. b . Calculate the

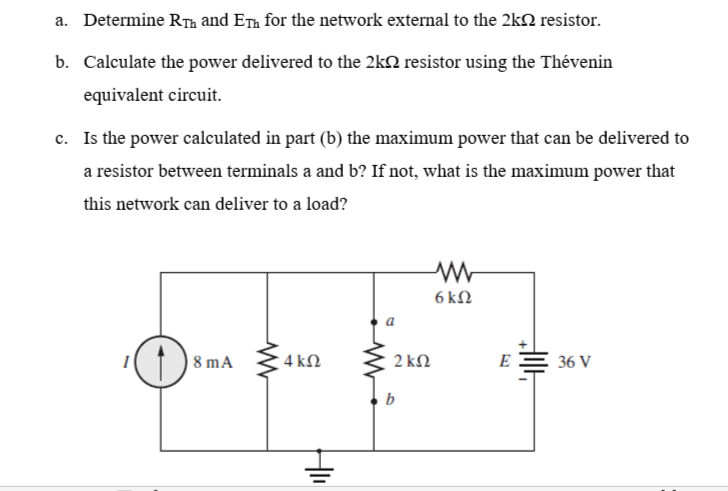

a. Determine R(Th) and E(Th) for the network external to the 2kOmega resistor.
b. Calculate the power delivered to the 2k resistor using the Thvenin equivalent circuit.
c. Is the power calculated in part (b) the maximum power that can be delivered to a resistor between terminals a and b? If not, what is the maximum power that this network can deliver to a load?
Please show step by step
a . Determine R ( Th ) and E ( Th ) for the

Step by Step Solution

There are 3 Steps involved in it
