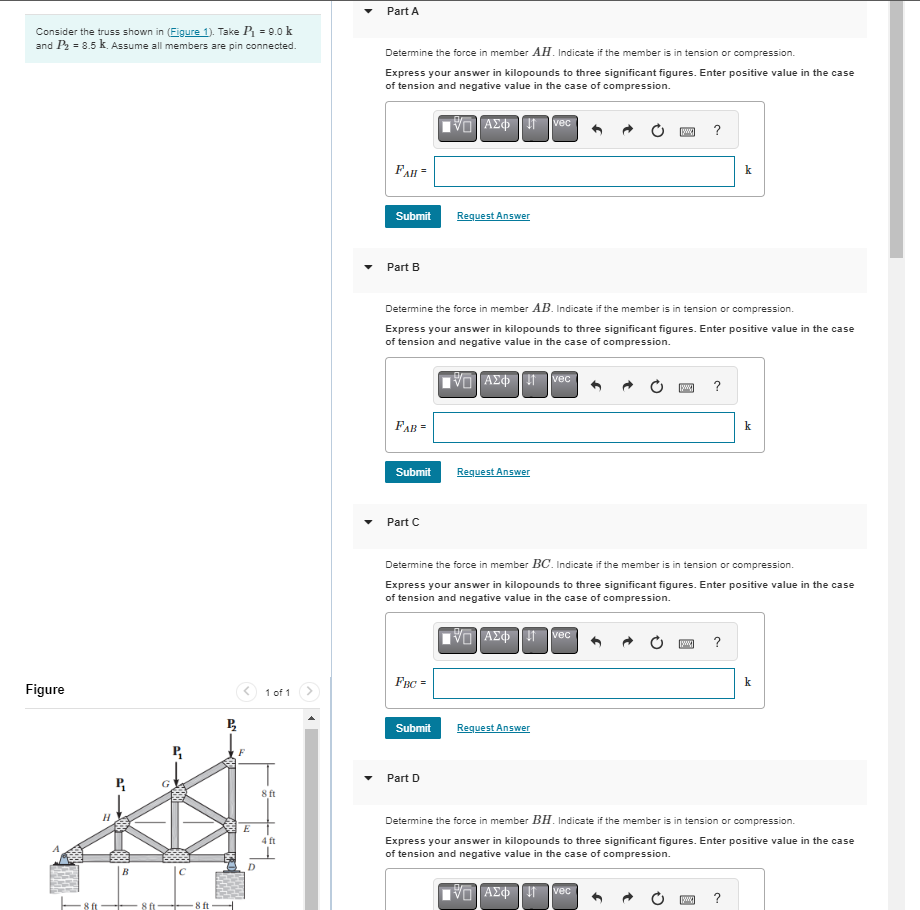

Question: A ) Determine the force in member AH . Indicate if the member is in tension or compression. B ) Determine the force in member
A Determine the force in member AH Indicate if the member is in tension or compression.
B Determine the force in member AB Indicate if the member is in tension or compression.
C Determine the force in member BC Indicate if the member is in tension or compression.
D Determine the force in member BH Indicate if the member is in tension or compression.
E Determine the force in member HC Indicate if the member is in tension or compression.
F Determine the force in member HG Indicate if the member is in tension or compression.
G Determine the force in member FG Indicate if the member is in tension or compression.
H Determine the force in member FG Indicate if the member is in tension or compression.
I Determine the force in member GE Indicate if the member is in tension or compression.
J Determine the force in member GC Indicate if the member is in tension or compression.
K Determine the force in member EC Indicate if the member is in tension or compression.
L Determine the force in member ED Indicate if the member is in tension or compression.
M Determine the force in member DC Indicate if the member is in tension or compression.
