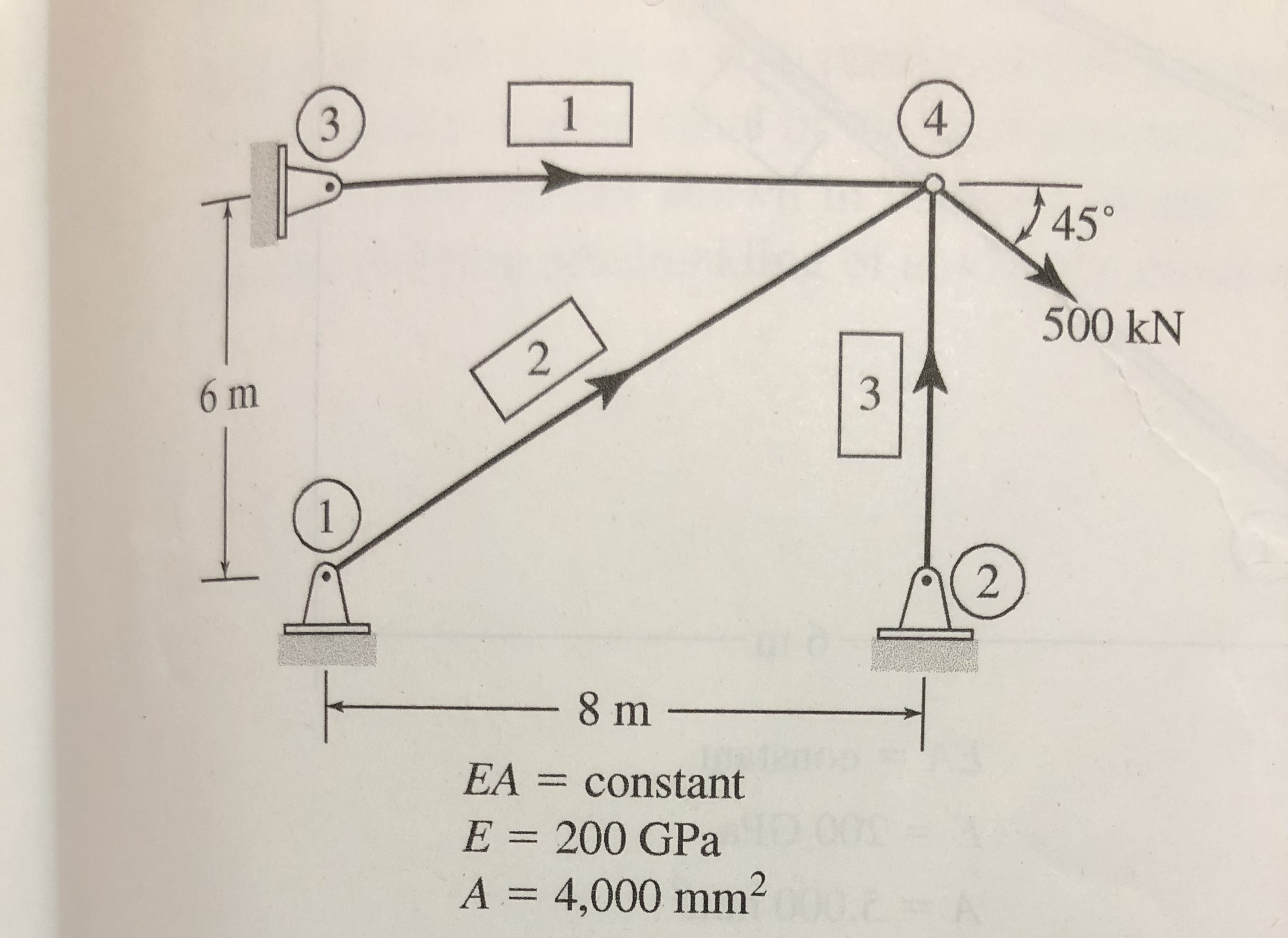

Question: ( a ) Determine the local stiffness k for each member of the trusses shown in the figure. ( b ) Determine the transformation matrix

(a) Determine the local stiffness k for each member of the trusses shown in the figure.
(b)Determine the transformation matrix T for each member of the trusses shown in the figure.
(c) Determine the structure stiffness matrices S for the trusses shown in the figure.
(d) Determibe the joint displacements, member axial forces and supoort reactions for the truss shown, using the matrix stiffness method.
( a ) Determine the local stiffness k for each

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
