Question: A . Determine the support reactions at A and E . ( 6 Points ) B . Using the method of sections, determine the force

A. Determine the support reactions at A and E.(6 Points)

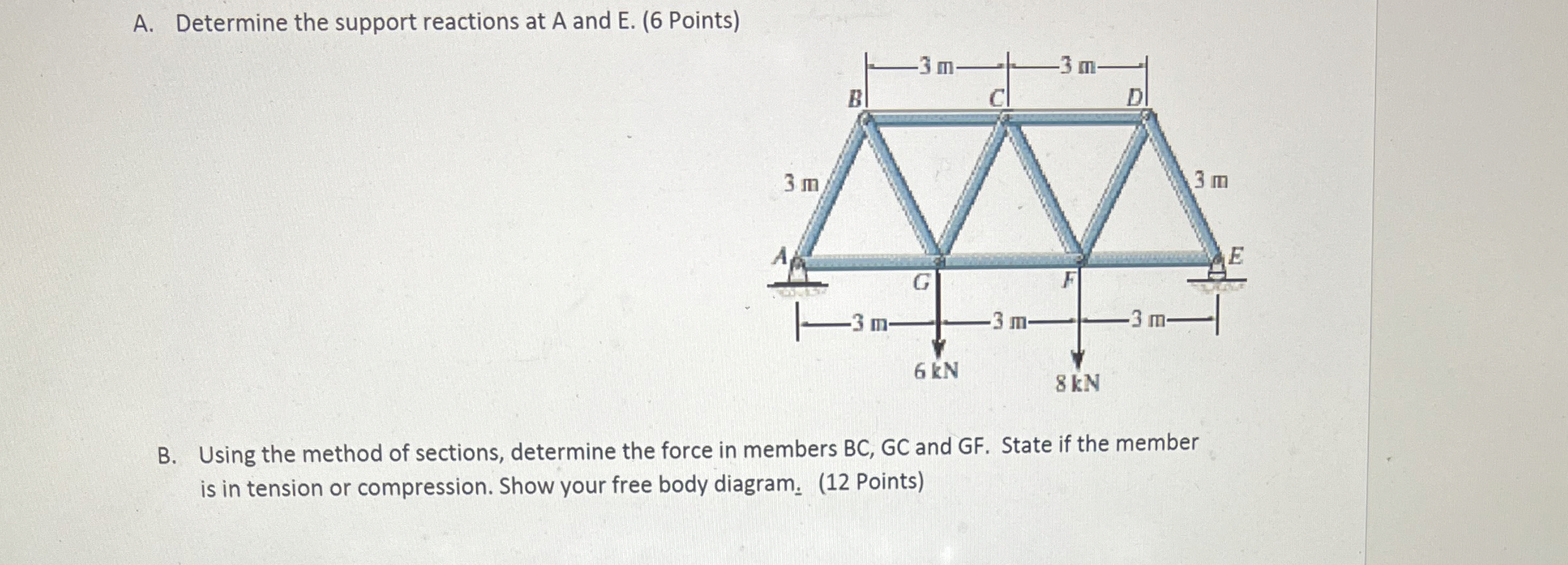

B. Using the method of sections, determine the force in members BC, GC and GF. State if the member is in tension or compression. Show your free body diagram. (12 Points)
A . Determine the support reactions at A and E .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
