Question: A dirigible is secured by a cable linked to its cabin at point B . If the tension in the cable is 2 , 3

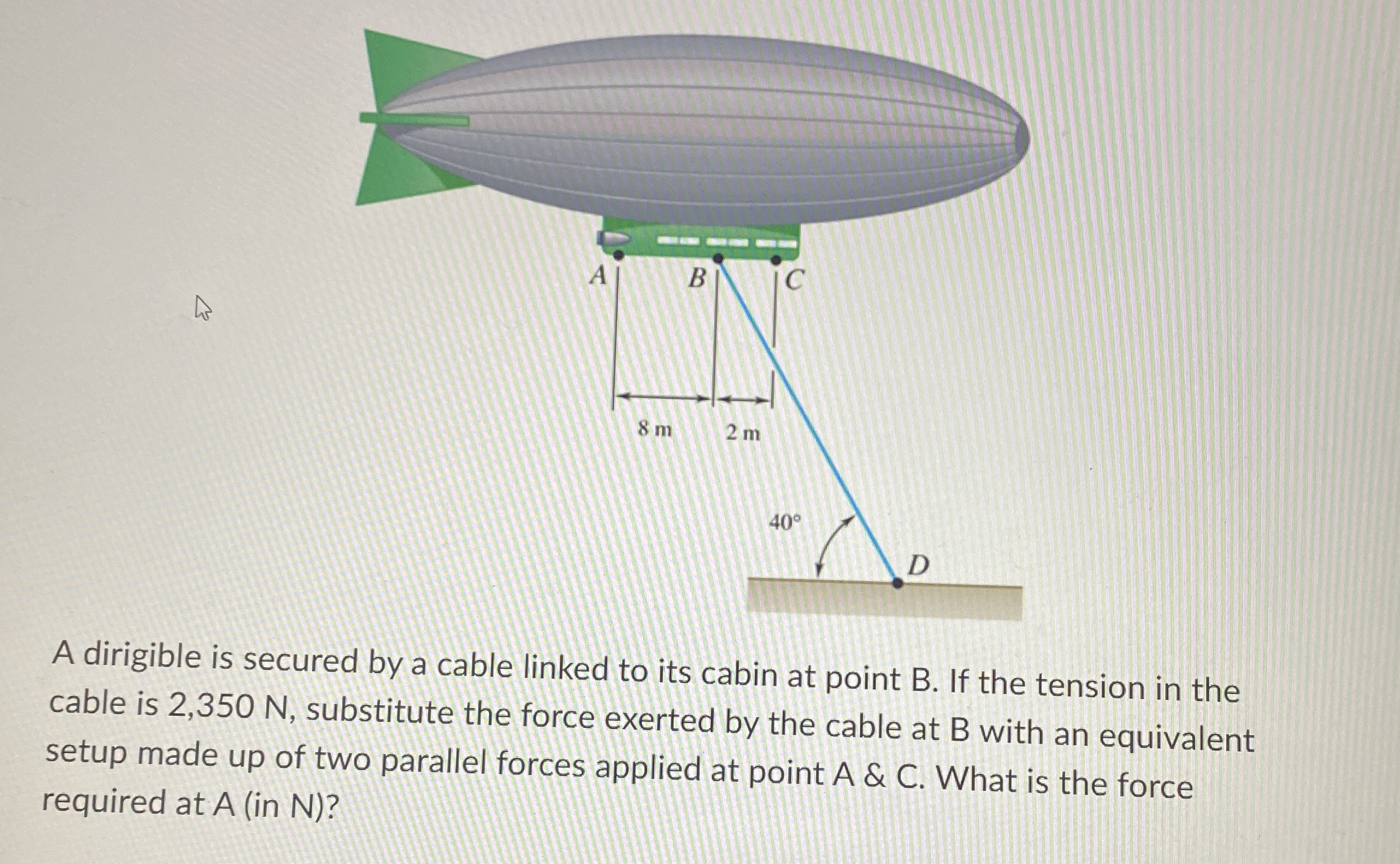

A dirigible is secured by a cable linked to its cabin at point B. If the tension in the
cable is 2,350N, substitute the force exerted by the cable at B with an equivalent
setup made up of two parallel forces applied at point A&C. What is the force
required at in N?
A dirigible is secured by a cable linked to its

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

A piece of plywood in which several holes are being drilled successively has been secured to a workbench by means of two nails. Knowing that the drill exerts a 12-Nm couple on the piece of plywood,...

Q:

A dirigible is tethered by a cable attached to its cabin at B. If the tension in the cable is 250 lb, replace the force exerted by the cable at B with an equivalent system formed by two parallel...

Q:

A dirigible is tethered by a cable attached to its cabin at B. If the tension in the cable is 250 lb, replace the force exerted by the cable at B with an equivalent system formed by two parallel...

Q:

A dirigible is tethered by a cable attached to its cabin at B. If the tension in the cable is 1040 N, replace the force exerted by the cable at B with an equivalent system formed by two parallel...

Q:

11. A 120 in.-long beam AB is attached to the wall with a pin at point A and to a 66 in.- long cable CD. A load lb is attached to the beam at point B. The tension in the cable T and the x and y...

Q:

A 120 in.-long beam AB is attached to the wall with a pin at point A and to a 66 in long cable CD. A load W = 200 lb is attached to the beam at point B. The tension in the cable T and the x and y...

Q:

using matlab software. syms command 8) [8 pts] A 120 in long beam AB is attached to the wall with a pin at point A and to a 66 in long cable CD. A load W-200 lb is attached to the beam at point B....
