Question: A double - channel shape, ( 2 mathrm { C } 9 times 2 0 ) tension member is connected to

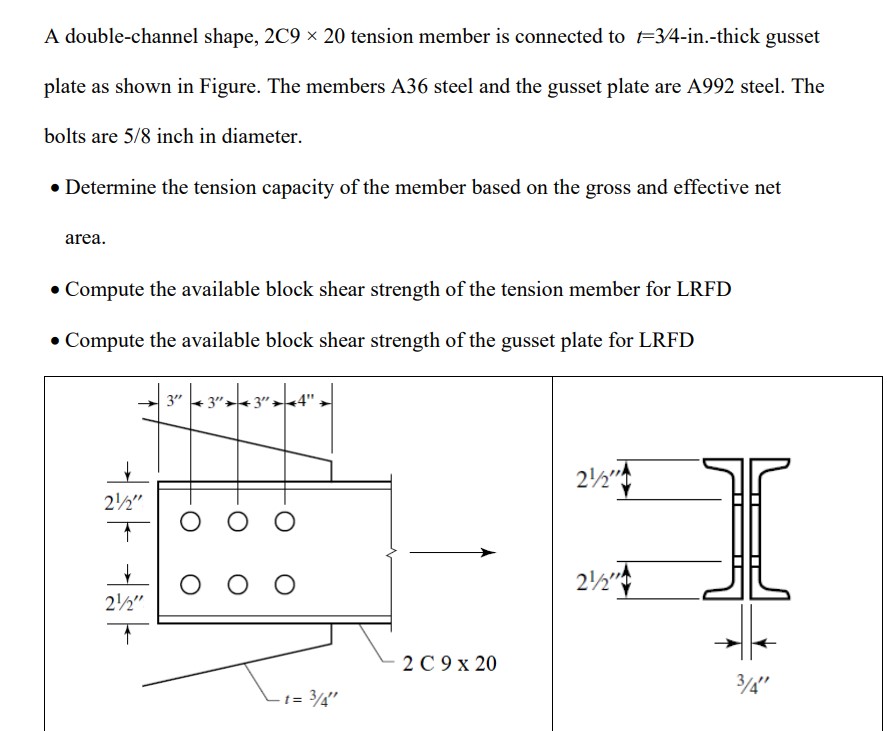

A double-channel shape, \(2\mathrm{C}9\times 20\) tension member is connected to \( t=3/4\)-in.-thick gusset plate as shown in Figure. The members A36 steel and the gusset plate are A992 steel. The bolts are \(5/8\) inch in diameter.
- Determine the tension capacity of the member based on the gross and effective net area.
- Compute the available block shear strength of the tension member for LRFD
- Compute the available block shear strength of the gusset plate for LRFD
A double - channel shape, \ ( 2 \ mathrm { C } 9

Step by Step Solution

There are 3 Steps involved in it
