a. Draw the block-diagram representing this project (5 points) (Note, block diagram is not the same as the Gantt chart)

b. Draw the Gantt Chart of Project Xerox and estimate the whole project duration (5 points)

c. Identify critical paths and any floater tasks (5 points)

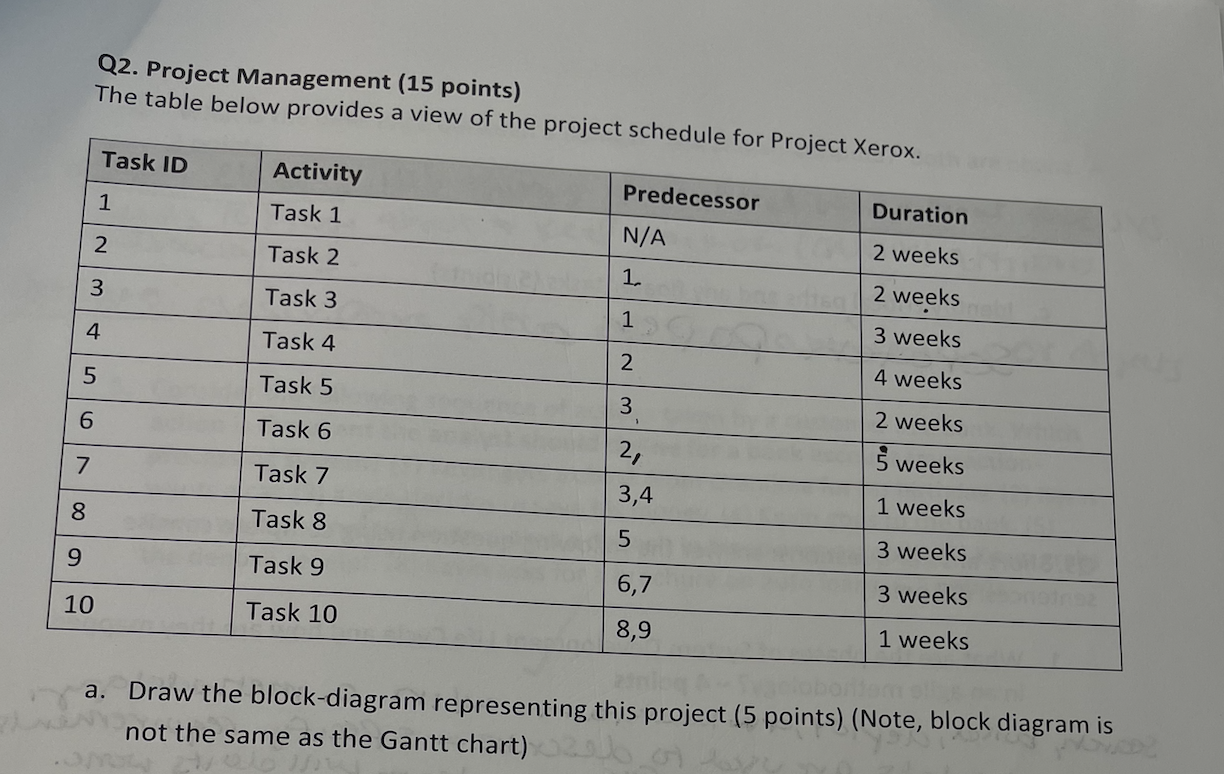

Q2. Project Management (15 points) The table below provides a view of the project schedula fann... a. Draw the block-diagram representing this project (5 points) (Note, block diagram is not the same as the Gantt chart)
