Question: a) Draw the network diagram. Also, identify the critical path and total project completion time for the following project. 6 marles Activity Duration (In weeks)

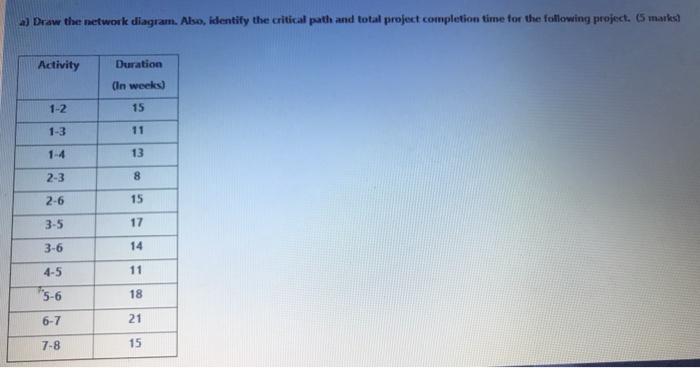

a) Draw the network diagram. Also, identify the critical path and total project completion time for the following project. 6 marles Activity Duration (In weeks) 1-2 15 1-3 11 1-4 13 2-3 8 2-6 15 3-5 17 3-6 14 4-5 11 5-6 18 6-7 21 7-8 15

Step by Step Solution

There are 3 Steps involved in it
