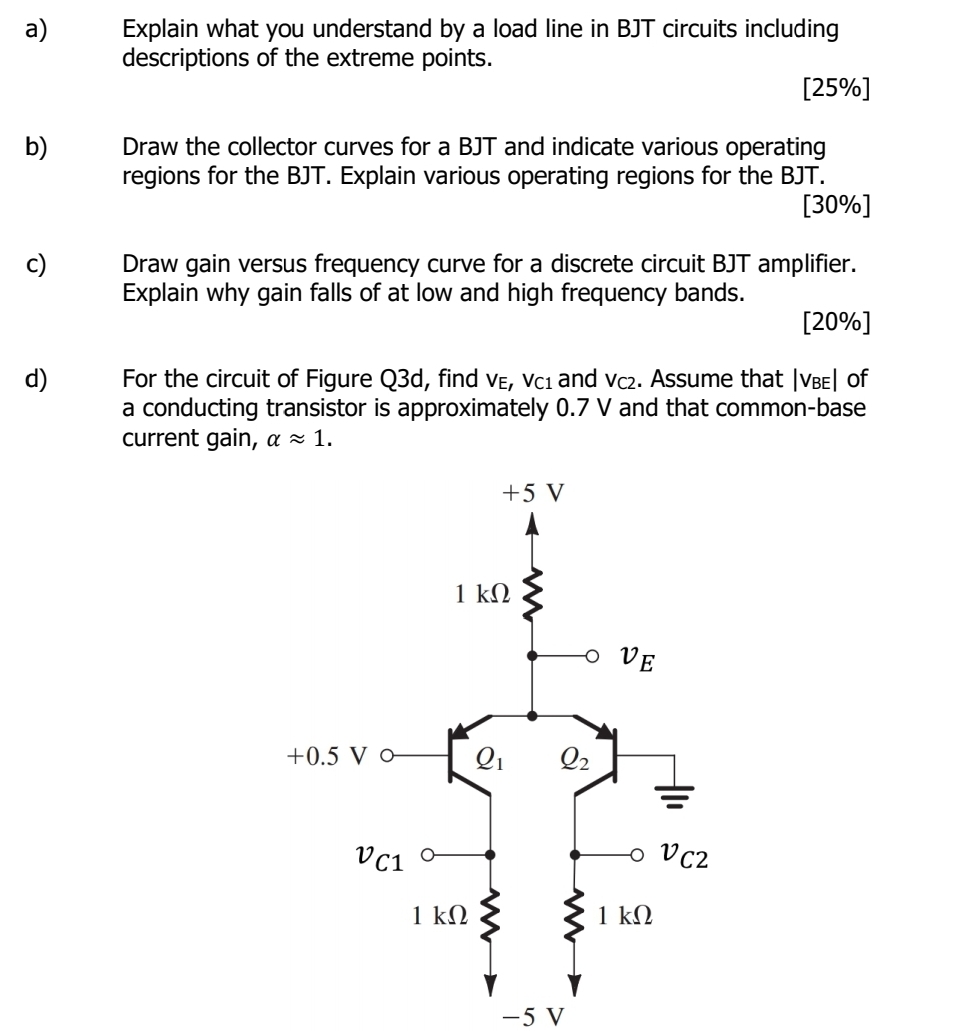

a$)$ Explain what you understand by a load line in BJT circuits including descriptions of the extreme points.

$[25\%]$

b$)$ Draw the collector curves for a BJT and indicate various operating regions for the BJT$.$ Explain various operating regions for the BJT$.[30\%]$

c$)$ Draw gain versus frequency curve for a discrete circuit BJT amplifier. Explain why gain falls of at low and high frequency bands.

$[20\%]$
