Question: A FA C DE AC = EB = 1/4L AD = BD = 1/2L L w (N/m) F B B Problem 4: Draw FBDs

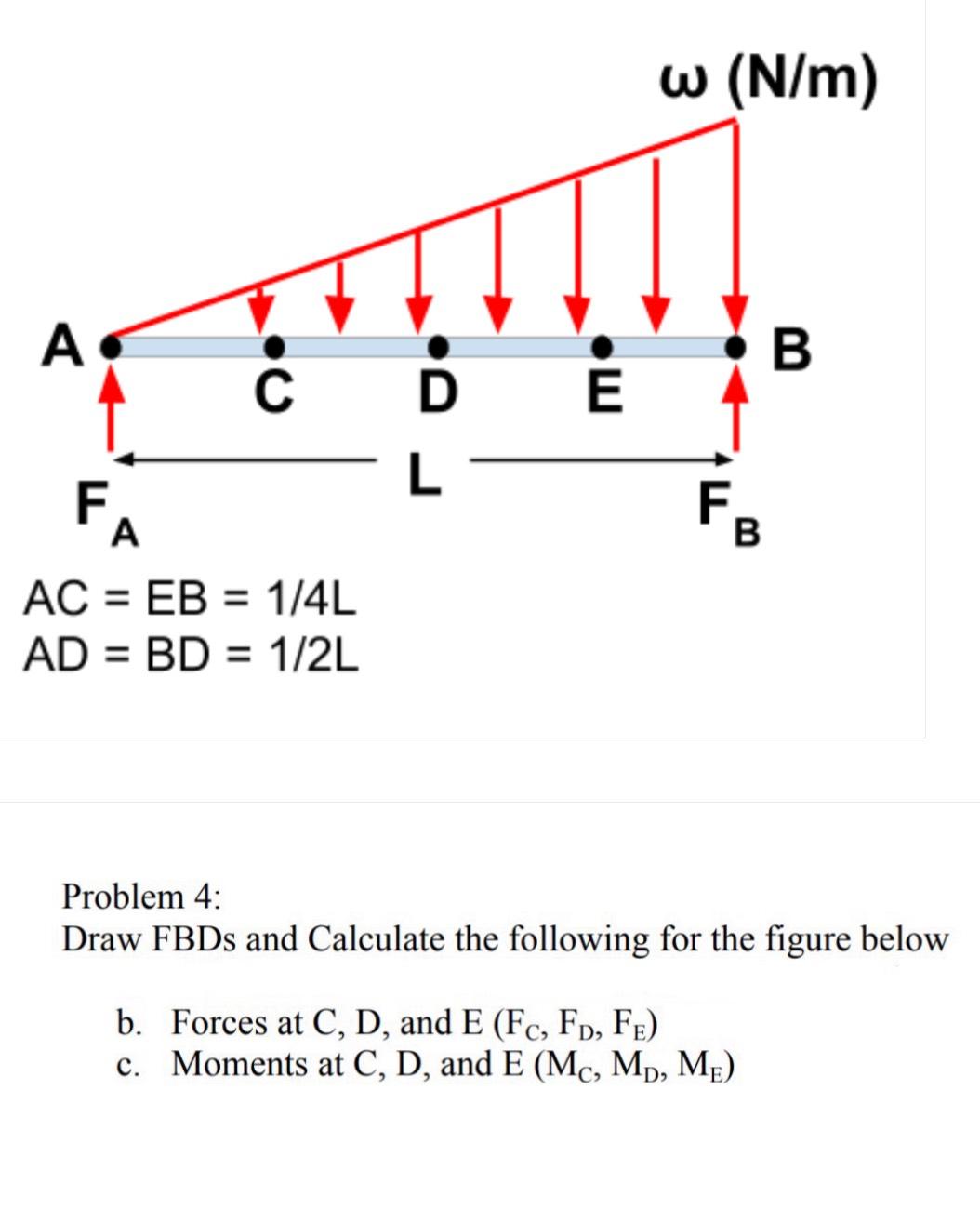

A FA C DE AC = EB = 1/4L AD = BD = 1/2L L w (N/m) F B B Problem 4: Draw FBDs and Calculate the following for the figure below b. Forces at C, D, and E (Fc, FD, FE) c. Moments at C, D, and E (MC, MD, ME)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
