Question: . ' A. Figure below shows force acting on a 1 rod AB. Determine the moment of the force about point A i. by determine

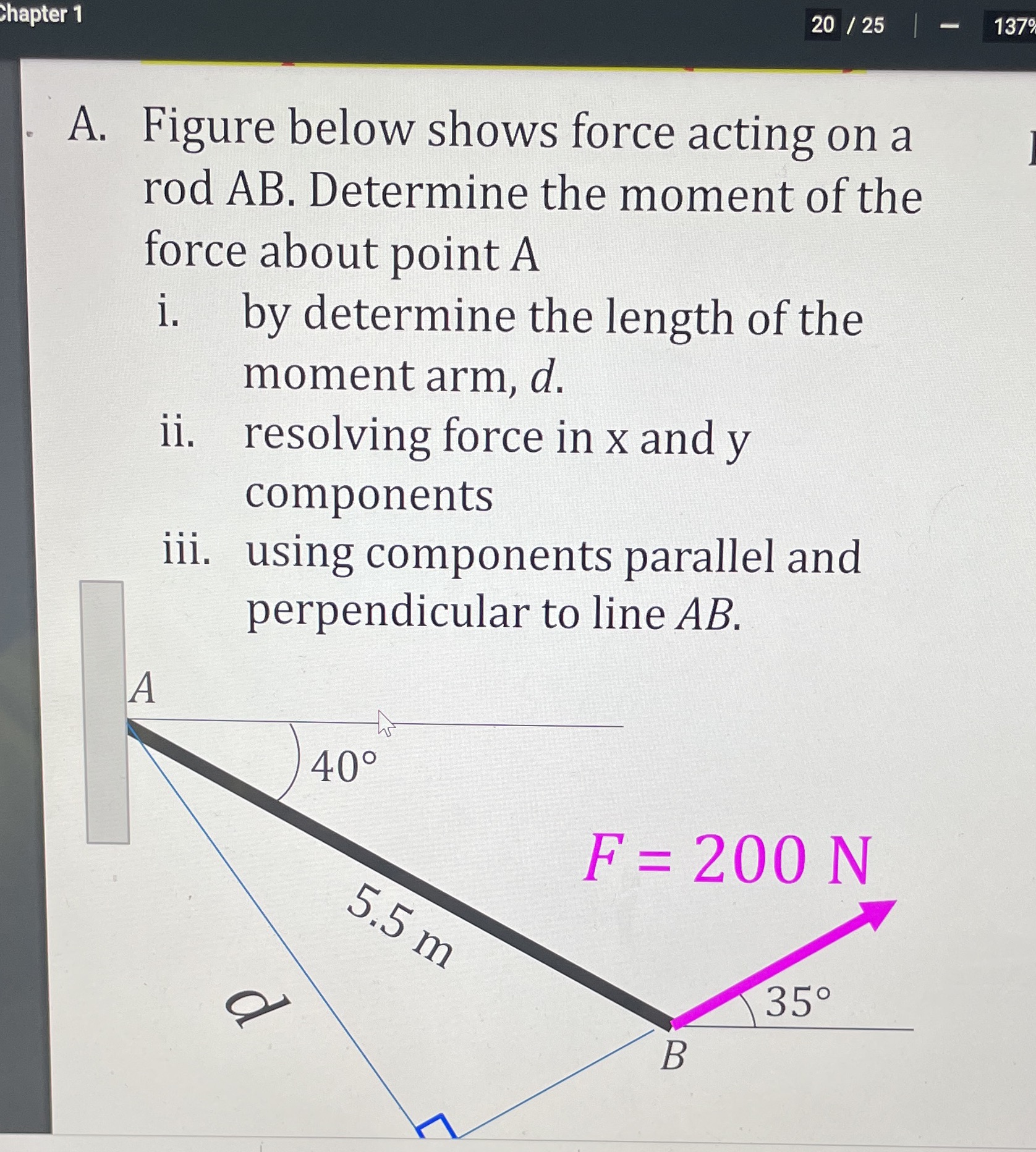

. ' A. Figure below shows force acting on a 1 rod AB. Determine the moment of the force about point A i. by determine the length of the moment arm, d. ii. resolving force in X and y components iii. using components parallel and perpendicular to line AB

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

7 8 00:48:09 A 23-in. vertical rod CD is welded to the midpoint C of the 50-in. rod AB. Determine the moment about AB of the 173-lb force Q. y 24 in. 32 in. eBook D fit A Hint H 17 in. CI 30 in. P Z...

A 23-in. vertical rod CD is welded to the midpoint C of the 50-in. rod AB. Determine the moment about AB of the 172-lb force Q. Components of the moment about point B = ( 0.64 Numeric ResponseEdit...

A 2 3 - in . vertical rod C D is welded to the midpoint C of the 5 0 - l n . rod A B . Determine the moment about A B of the 1 7 9 - l b force Components of the moment about point The unlt vector...

The figure below shows forces acting at various points on a metal rod. The angles = 4 8 , = 3 3 , = 2 1 . The length = 3 . 8 m . Find the net torque ( in N m ) on the rod about the following axes. A...

In the figure below, two rods are connected by a frictionless collar at B . The magnitude of the couple moment MA is 5 0 0 lb . in . ( i ) sketch the resulting Free - Body Diagram ( FBD ) , showing...

Consider the frame shown in ( Figure 1 ) . Suppose that PP = 5 8 0 NN , MM = 9 3 0 N mN m . Follow the sign convention. Part A Determine the internal normal force acting at point DD . Part B...

Consider the system shown in ( Figure 1 ) . igure 1 of 1 Part A Determine the moment of the force F about the door hinge at A . Enter the x , y , and z components of the moment in pound - feet to...

Consider the pipe assembly in (Figure 1). F = {30i +20j - 30k} N. F = {60i 10j - 25k} N. Figure 0.8 m -0 1.20 m 0.4 m y F 1 of 1 Part A Determine the moment about point of force F acting on the pipe...

Figure 3 shows a 3 - D force vector with two ropes connected at the hook at point A and stretched to specific points B and C . A force of 7 0 N and 4 0 N was applied to the ropes A B and A C ,...
