Question: a ) Find all the forces ONLY at joint A using the joint method. b ) Find the force along member G E using the

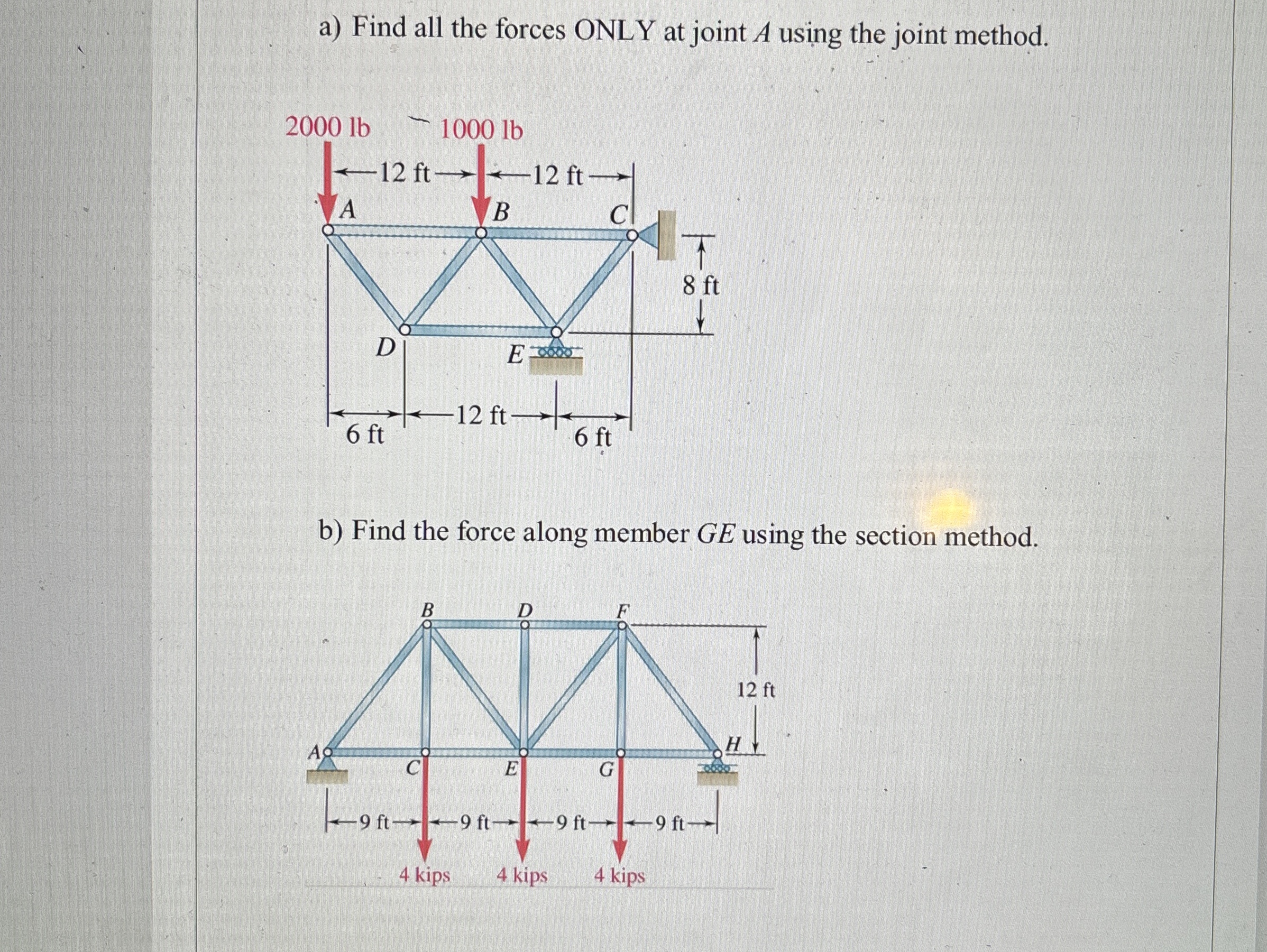

a) Find all the forces ONLY at joint A using the joint method.
b) Find the force along member GE using the section method.
a ) Find all the forces ONLY at joint A using the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
