Question: a . Find the axial force in the requested elements. Forces in bars FH , EF , and DG . Horizontal distances 1 0 ft

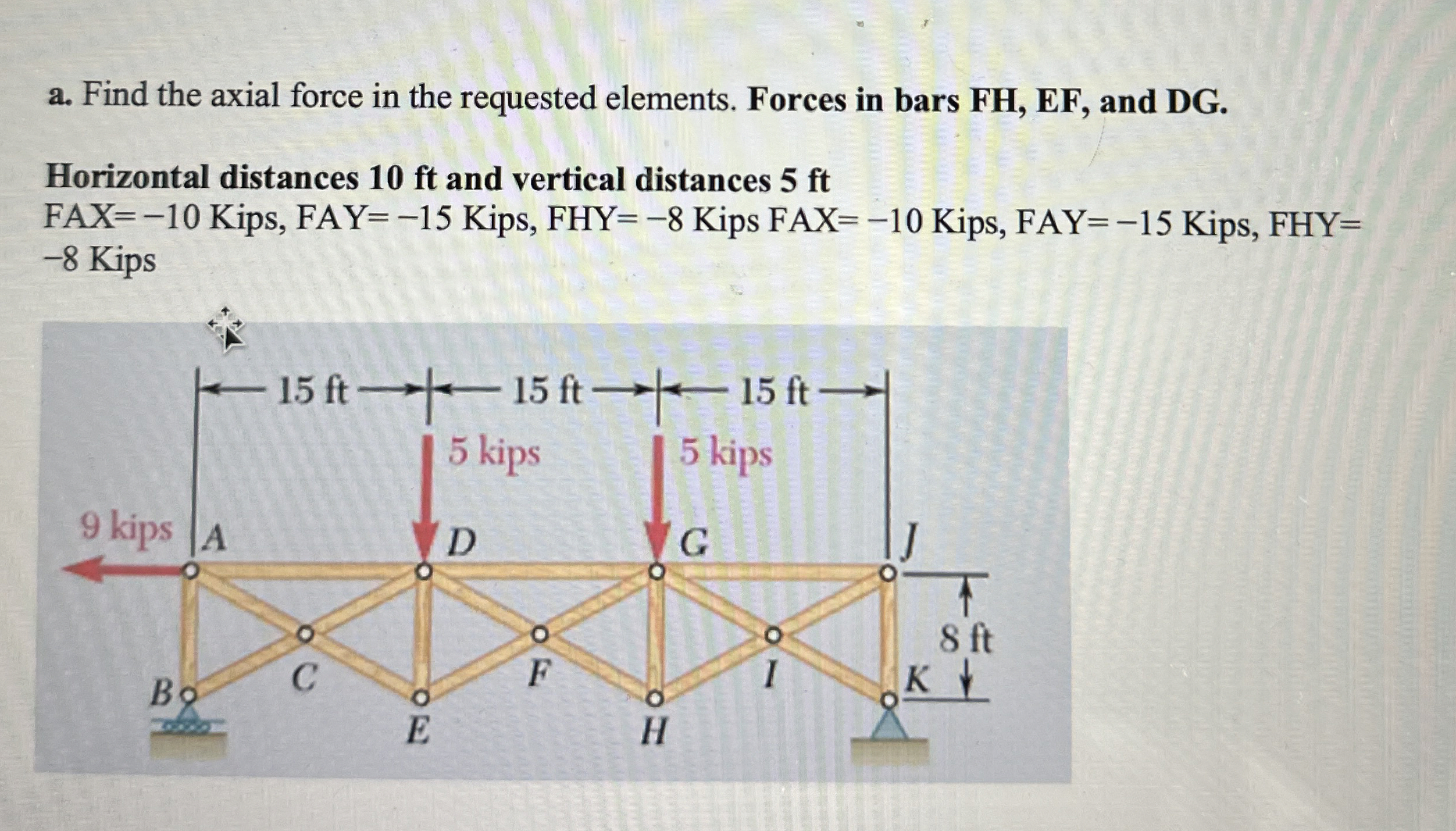

a. Find the axial force in the requested elements. Forces in bars FH, EF, and DG.
Horizontal distances 10 ft and vertical distances 5 ft
FAX =-10Kips,FAY=-15Kips,FHY=-8KipsFAx=-10Kips,FAY=-15Kips,FHY=
-8Kips
a . Find the axial force in the requested

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
