Question: A fixed support is subjected to three forces as shown below The force vector F 2 in KN is represented as The magnitude of the

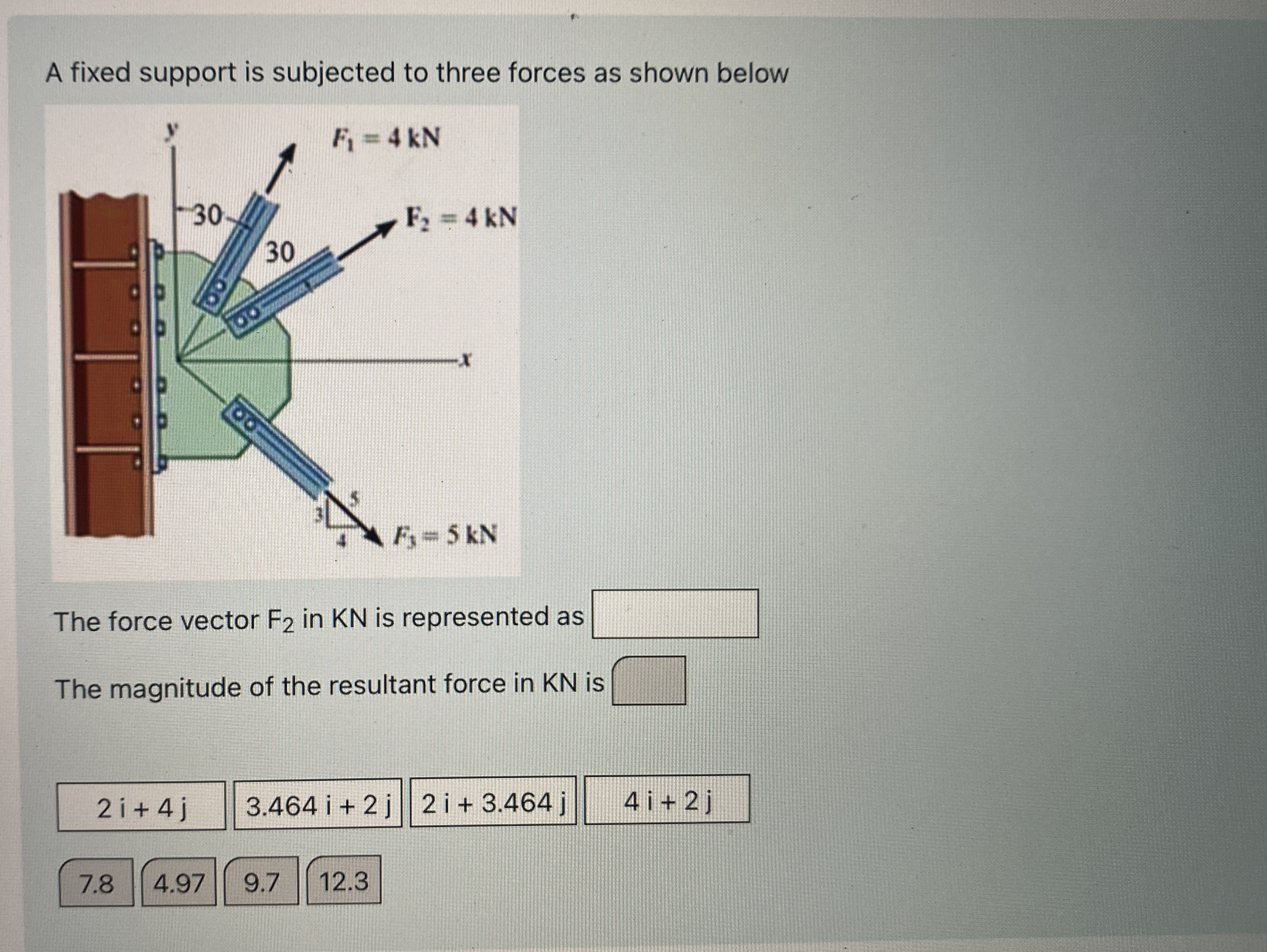

A fixed support is subjected to three forces as shown below
The force vector F2 in KN is represented as
The magnitude of the resultant force in KN is
3.464i+2j
2i+3.464j
4i+2j
A fixed support is subjected to three forces as

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
