Question: A flow net is given in Figure Q 2 . ( 1 ) Determine the quantity of seepage water flowing through the clay stratum below

A flow net is given in Figure Q2.

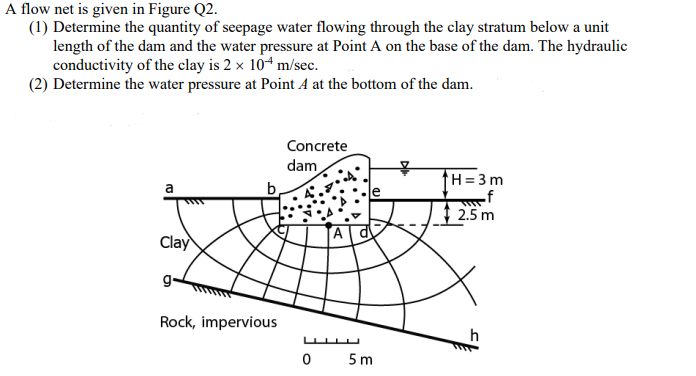

(1) Determine the quantity of seepage water flowing through the clay stratum below a unit length of the dam and the water pressure at Point A on the base of the dam. The hydraulic conductivity of the clay is \(2\times 10^{-4}\mathrm{~m}/\mathrm{sec}\).
(2) Determine the water pressure at Point \( A \) at the bottom of the dam.
A flow net is given in Figure Q 2 . ( 1 )
