Question: ( a ) For the frame shown in Fig.Q . 1 ( a ) , ( i ) determine the end moments of each (

(a) For the frame shown in Fig.Q.1(a),(i) determine the end moments of each (20+18)
member and (ii) draw its shear force and bending moment diagram and
qualitative deflected shape using moment distribution method. Please make the moment distrdistribution table clearly for my proper undeunderstanding..Thank you...

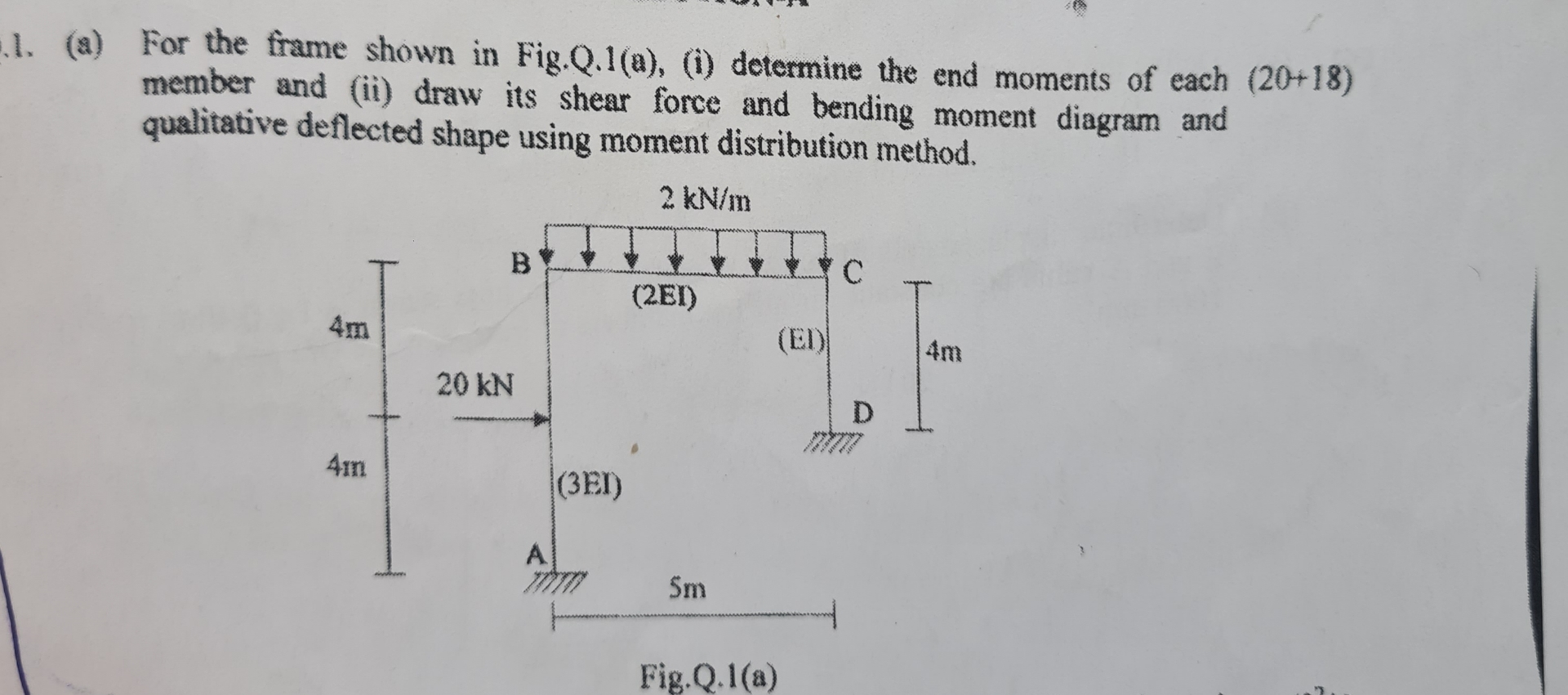

Fig.Q.1(a)
( a ) For the frame shown in Fig.Q . 1 ( a ) , (

Step by Step Solution

There are 3 Steps involved in it
