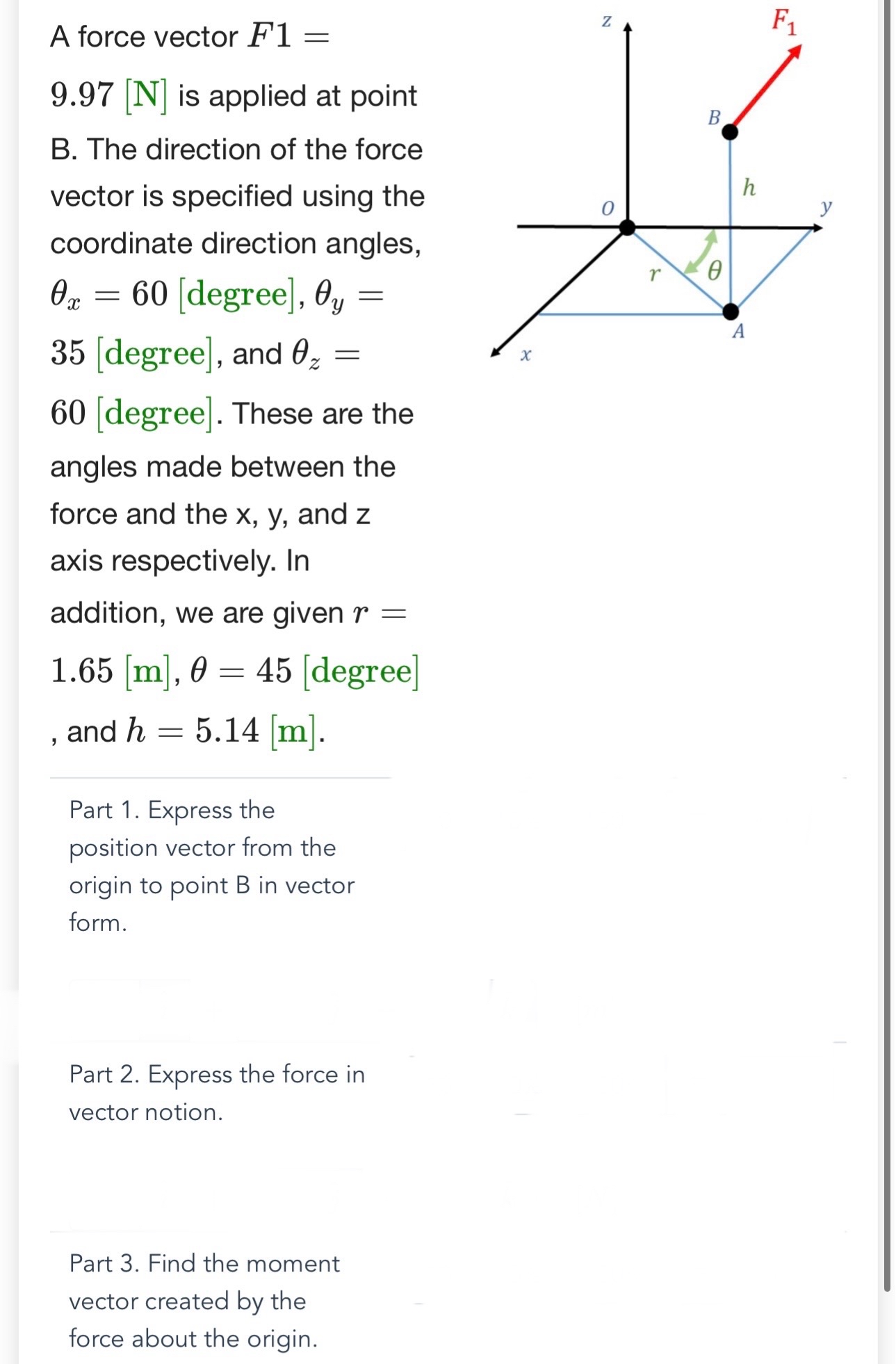

Question: A force vector F 1 = 9 . 9 7 [ N ] is applied at point B . The direction of the force vector

A force vector F1=
9.97[N] is applied at point
B. The direction of the force
vector is specified using the
coordinate direction angles,
x=60[degree],y=
35[degree], and z=
60[degree]. These are the
angles made between the
force and the x,y, and z
axis respectively. In
addition, we are given r=
1.65[m],=45[degree]
, and h=5.14[m].
Part 1. Express the
position vector from the
origin to point B in vector
form.
Part 2. Express the force in
vector notion.
Part 3. Find the moment
vector created by the
force about the origin.
A force vector F 1 = 9 . 9 7 [ N ] is applied at
