Question: A four - span continuous beam of constant rectangular cross section is supported at A , B , C , D , and E .

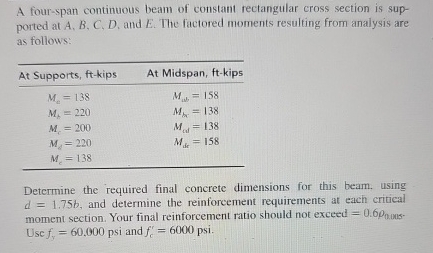

A four-span continuous beam of constant rectangular cross section is supported at A,B,C,D, and E. The factored moments resulting from analysis are as follows:
\table[[At Supports, ft-kips,At Midspan, please just draw the bending moment diagram
A four - span continuous beam of constant

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
