Question: A frame structure ABCD as shown below is fixed at A . A trapezoidal distributed force is applied on the section BC of the frame

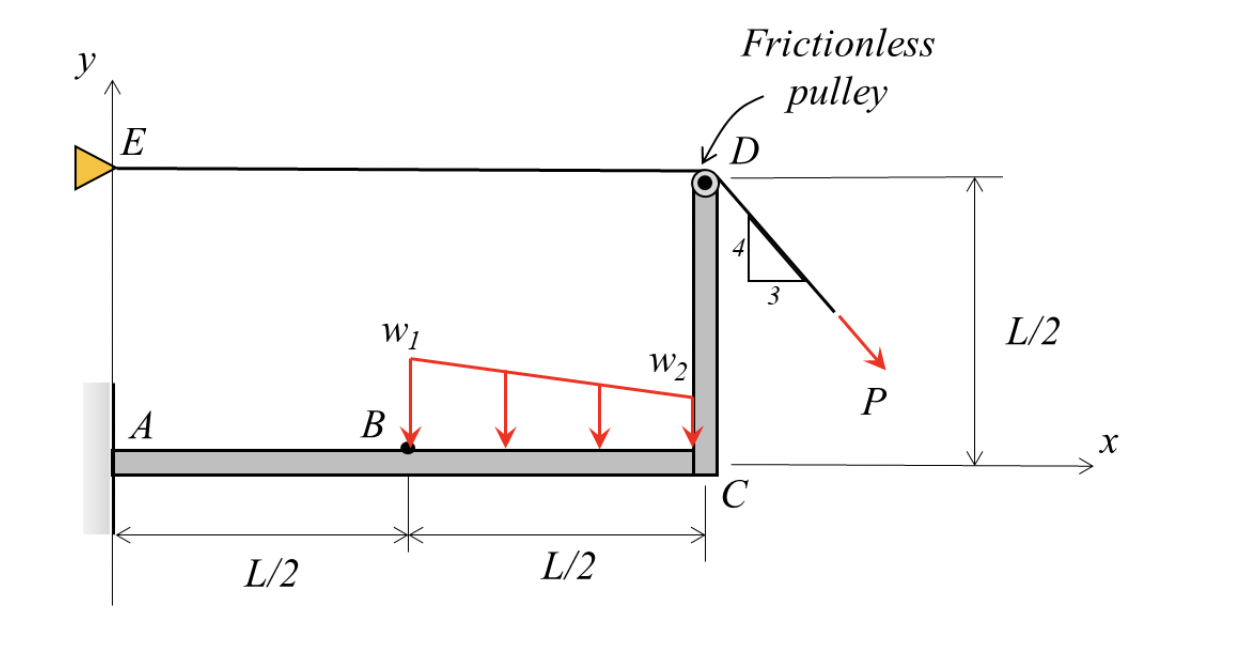

A frame structure ABCD as shown below is fixed at A.A trapezoidal distributed force is applied on the section BC of the frame structure. A cable is attached at point E and run through a frictionless pulley attached on the frame structure at point D. The cable is then pulled with a force P in an orientation shown in the figure below. Calculate the reactions at the fix support A.
Please use this numerical information in your calculation: L =4 m, w1=20 N/m, w2=10 N/m, P =100 N.
A frame structure ABCD as shown below is fixed at
