Question: A fuselage thin wall cross section of circular shape ( Figure below ) is being analyzed for stresses under the effect of a 5 0

A fuselage thin wall cross section of circular shape (Figure below) is being analyzed for stresses under the effect of a 5000 N shear force applied parallel to the left side of the section, at station 0. The diameter of the cross-section is 2000 mm and the wall thickness is of 1 mm .
a) Determine the maximum normal stresses on a cross section 3000 mm behind station 0.
b) Obtain the shear flow around the section

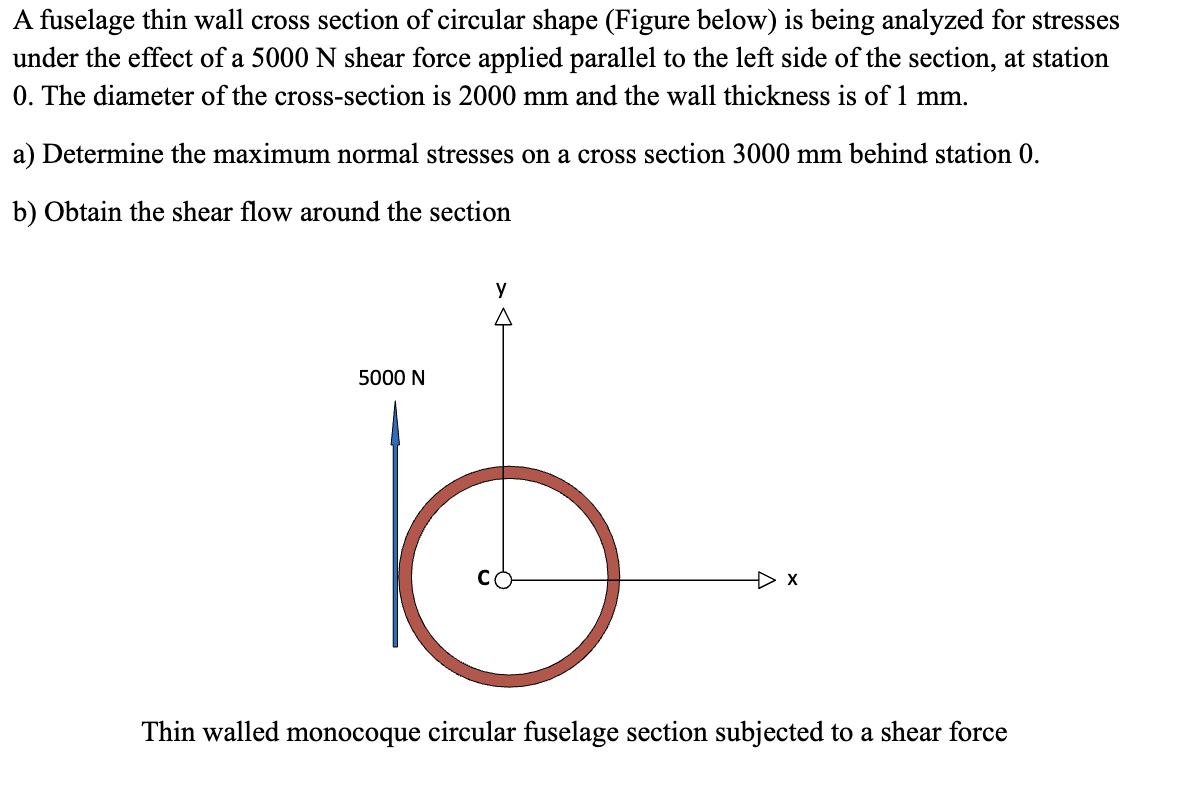

Thin walled monocoque circular fuselage section subjected to a shear force
do not use CHATGPT
A fuselage thin wall cross section of circular

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
