Question: A gate 3 m high and 1 . 5 m wide is hinged at point B and rest against a smooth wall at A .

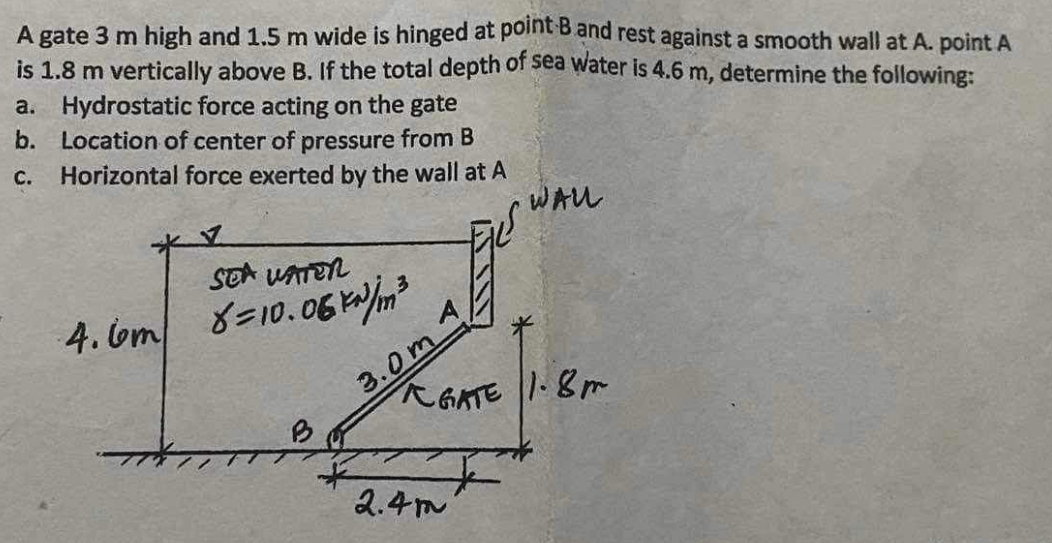

A gate 3 m high and 1.5 m wide is hinged at point B and rest against a smooth wall at A. point A
is 1.8 m vertically above B. If the total depth of sea water is 4.6 m , determine the following:
a. Hydrostatic force acting on the gate
b. Location of center of pressure from B
c. Horizontal force exerted by the wall at A
A gate 3 m high and 1 . 5 m wide is hinged at

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
