Question: A homogeneous, 4 - ft - wide, 8 . 9 - ft - long rectangular gate weighing 8 0 0 lb is held in place

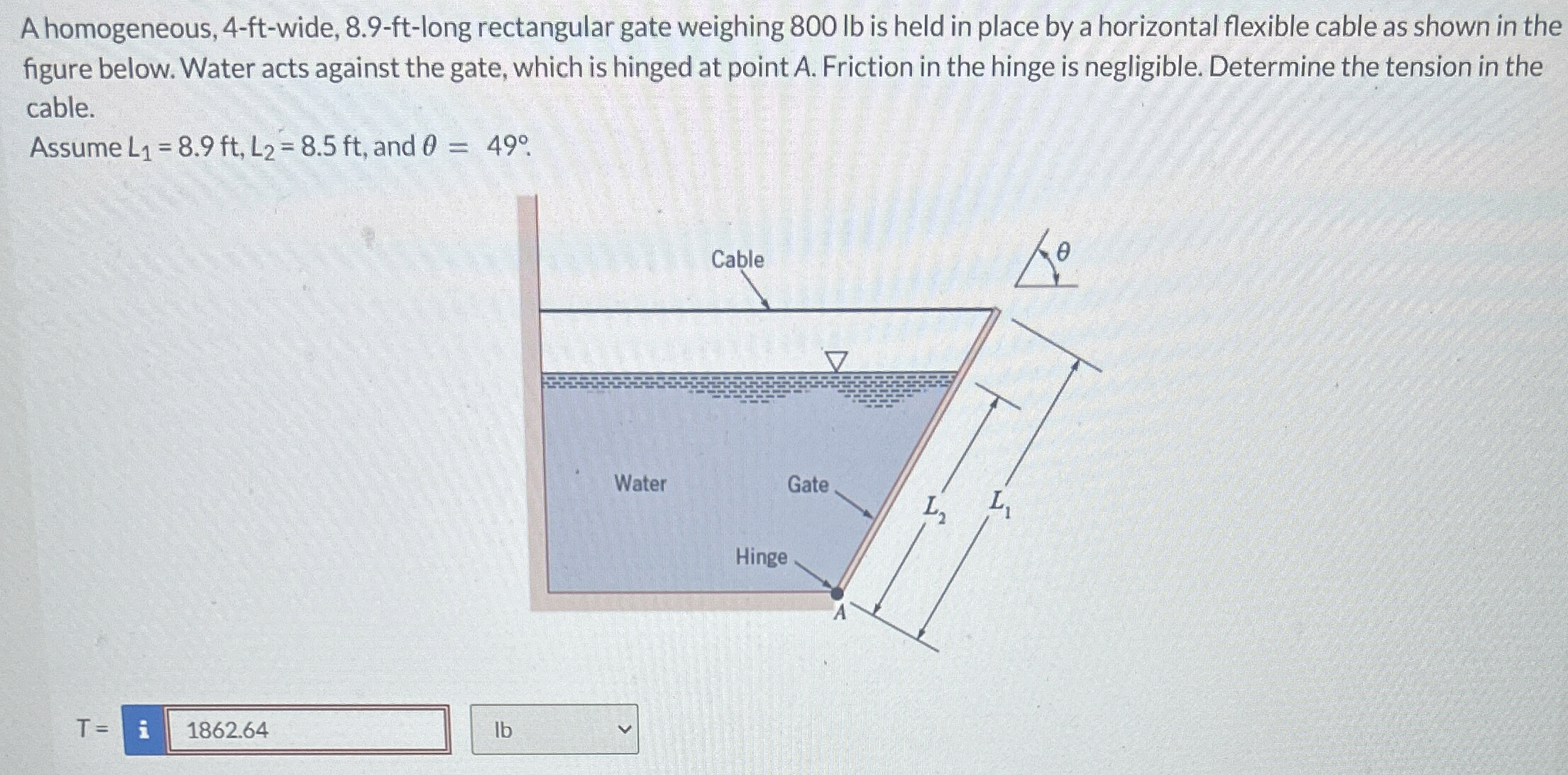

A homogeneous, 4-ft-wide, 8.9-ft-long rectangular gate weighing 800 lb is held in place by a horizontal flexible cable as shown in the
figure below. Water acts against the gate, which is hinged at point A. Friction in the hinge is negligible. Determine the tension in the
cable.
Assume L1=8.9ft,L2=8.5ft, and =49.
T=
A homogeneous, 4 - ft - wide, 8 . 9 - ft - long

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
