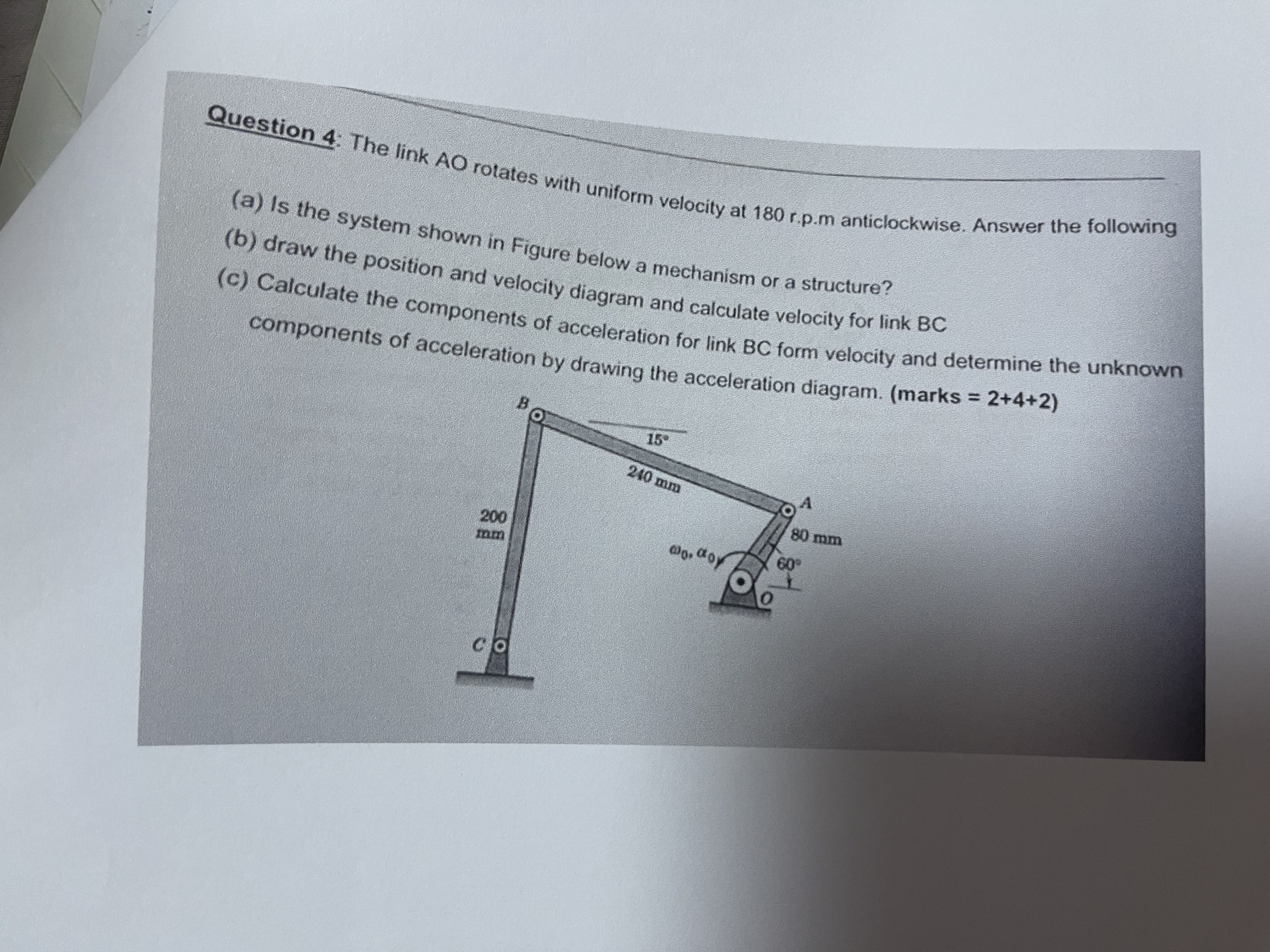

Question: ( a ) Is the system shown in Figure below a mechanism or a structure? ( b ) draw the position and velocity diagram and

(a) Is the system shown in Figure below a mechanism or a structure?
(b) draw the position and velocity diagram and calculate velocity for link BC
(c) Calculate the components of acceleration for link BC form velocity and determine the unknown
components of acceleration by drawing the acceleration diagram (marks =2+4+2)
( a ) Is the system shown in Figure below a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Question 4 : The link A O rotates with uniform velocity at 1 8 0 r . p . m anticlockwise. Answer the following ( a ) Is the system shown in Figure below a mechanism or a structure? ( b ) draw the...

Q:

A foot pump is depicted in the figure. At the given time instant, link ABC is rotating anti-clockwise about point C at a constant rate of 30 rad/s. The rotation of link ABC is determining the rate of...
