Question: a) its reference vector at this instant; b) which vectors for how long should be used to synthesize the reference vector for over the switching

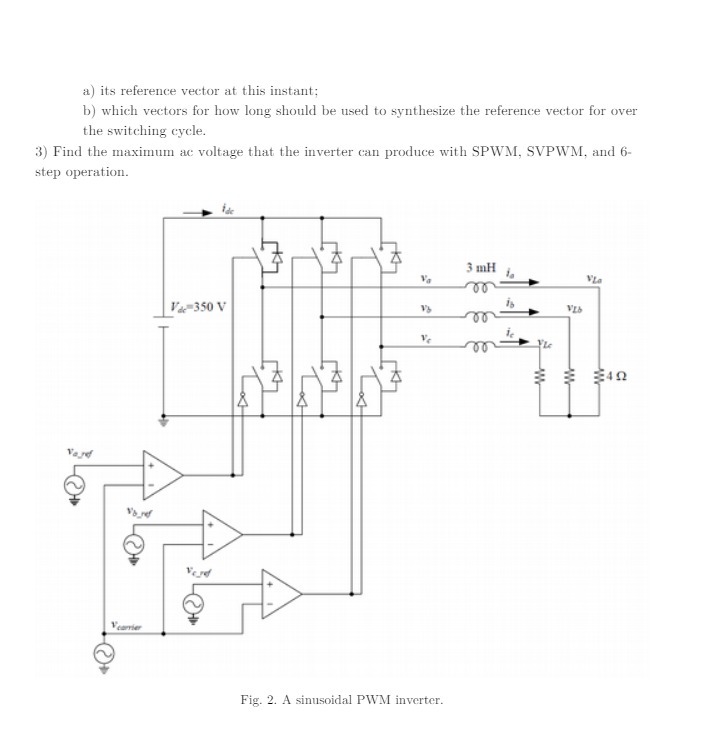

a) its reference vector at this instant; b) which vectors for how long should be used to synthesize the reference vector for over the switching cycle. 3) Find the maximum ac voltage that the inverter can produce with SPWM, SVPWM, and 6- step operation. 3 mH Va V&=350 V E:40 Do Do Vard Va_ref Verd Yearrier Fig. 2. A sinusoidal PWM inverter

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
