Question: A laminated plastic beam of triangular cross section is built up by gluing together three sections ( see figure ) . The beam is simply

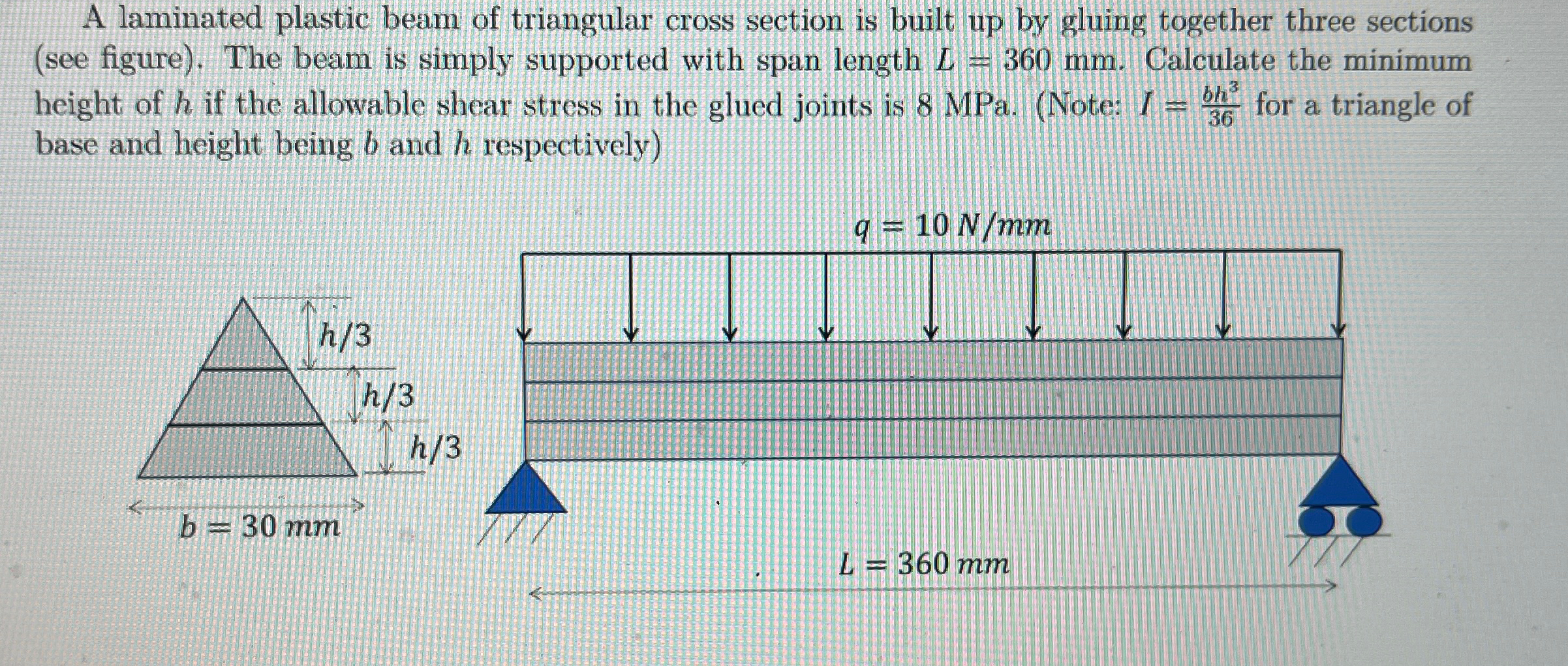

A laminated plastic beam of triangular cross section is built up by gluing together three sections (see figure). The beam is simply supported with span length L=360mm. Calculate the minimum height of h if the allowable shear stress in the glued joints is 8MPa. (Note: I=bh336 for a triangle of base and height being b and h respectively)
q=10Nmm
A laminated plastic beam of triangular cross

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
