Question: A logic circuit implements the following Boolean function: f ( A , C , D ) ? b = a r ( A ) C

A logic circuit implements the following Boolean function:
f(A,C,D)?b=ar(A)C+Abar(C)D
It is found that the circuit input combination A=D=l can never occur. Find a simpler expression
in Sums of Products form for F using the proper don't care conditions.
a.,f(A,C,D)=C+Abar(D)
b.,f(A,C,D)?b=ar(A)+barCbar(D)
c. Cannot get a simpler expression
d.f(A,C,D)?b=ar(A)C+Abar(C)

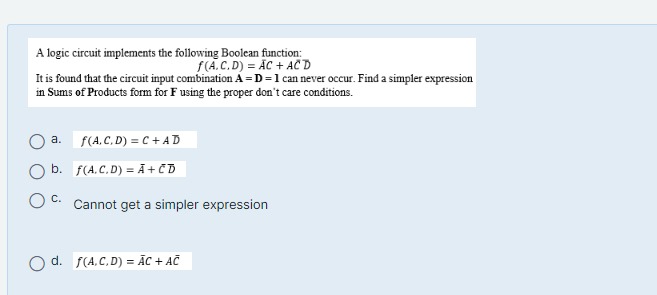

 A logic circuit implements the following Boolean function: f(A,C,D)?b=ar(A)C+Abar(C)D It is

Step by Step Solution

There are 3 Steps involved in it
