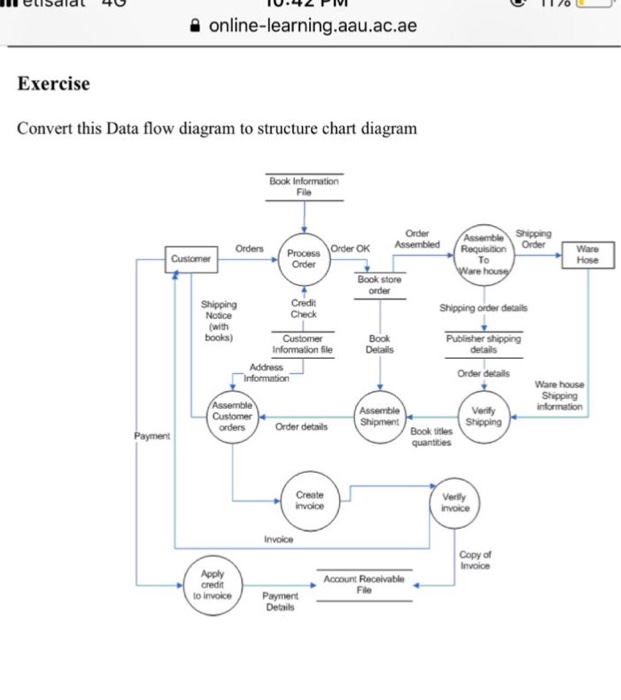

Question: a online-learning.aau.ac.ae Exercise Convert this Data flow diagram to structure chart diagram Book Information File Process Order OK ssmbed Assemb Shipping Requisiton Order Order To

a online-learning.aau.ac.ae Exercise Convert this Data flow diagram to structure chart diagram Book Information File Process Order OK ssmbed Assemb Shipping Requisiton Order Order To Hose Order Book store order Credit Shipping order details with Infonmation file Order details Ware house Order details Book itles Create nvoice Copy of credrt to invoicePayment Account Receivable File

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Exercise Convert this Data flow diagram to structure chart diagram Book Information Process Order OK Assembled Assemble Shipping Requisition Order OrdersProcess To Hose Order Book store order...

Exercise Convert this Data flow diagram to structure chart diagram Book information Process OrderKdssbl Shipping Order Order AssemibieOrder Order OK Requision OrrWare To Book store Credi Check...

Convert this Data flow diagram to structure chart diagram Book Information File Order Assemble Shipping Orders Customer Process Order OK Order Assembled Order Requisition Ware To Hose Ware house...

it dosent need any thing more this is a data flow diagram and i want you to change it to structre chart Convert this Data flow diagram to structure chart diagram Book Information Fila Order Assembled...
