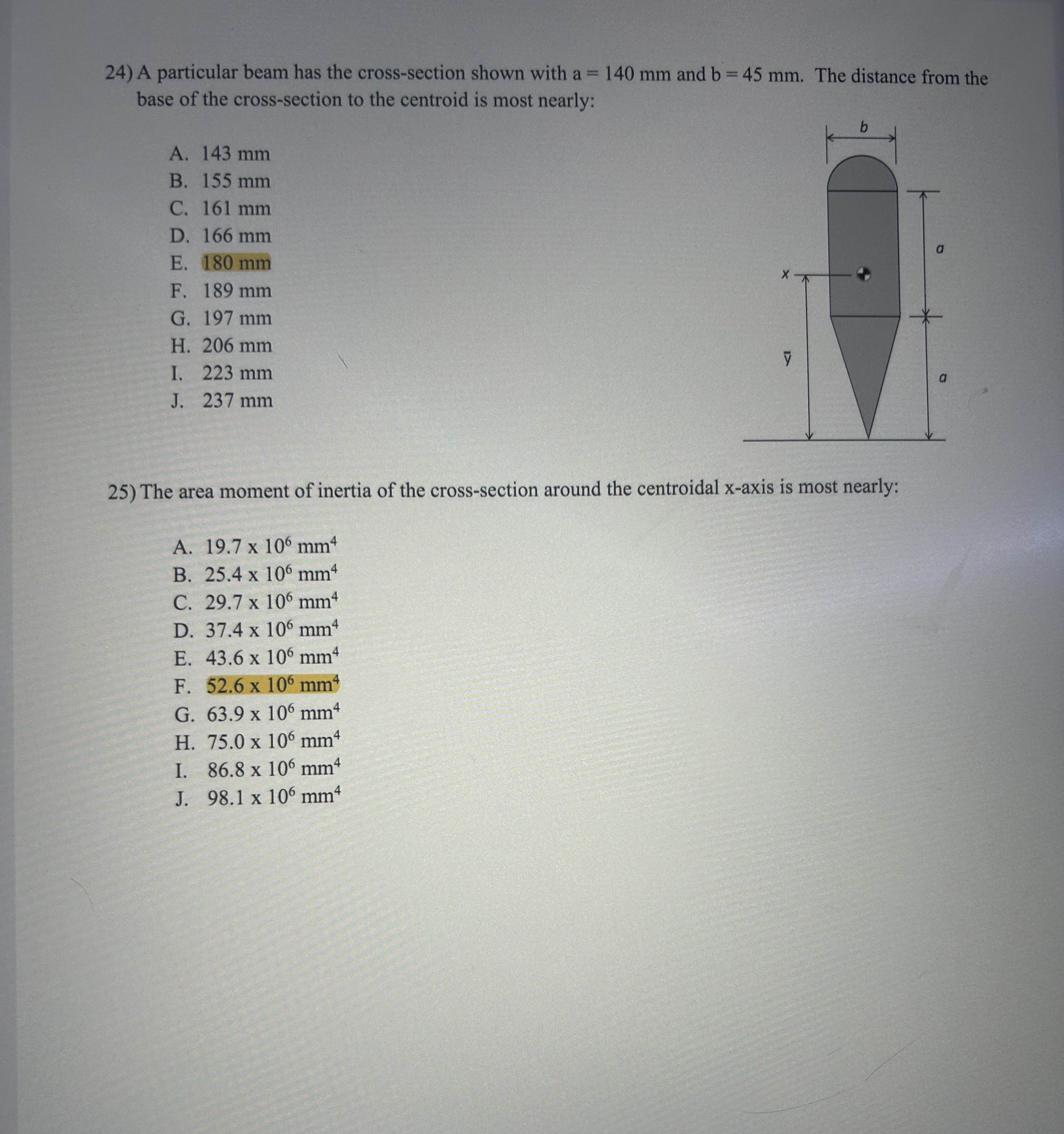

Question: A particular beam has the cross - section shown with a = 1 4 0 m m and b = 4 5 m m .

A particular beam has the cross-section shown with a=140mm and b=45mm. The distance from the base of the cross-section to the centroid is most nearly:
A.143 mm
B.155 mm
C.161 mm
D.166 mm
E.180 mm
F.189 mm
G.197 mm
H.206 mm
I. 223 mm
J.237 mm
The area moment of inertia of the cross-section around the centroidal x-axis is most nearly:
A.19.7106mm4
B.25.4106mm4
C.29.7106mm4
D.37.4106mm4
E.43.6106mm4
F.52.6106mm4
G.63.9106mm4
H.75.0106mm4
I. 86.8106mm4
J.98.1106mm4
A particular beam has the cross - section shown
