Question: A pin-connected truss is loaded and supported as shown. Each aluminum member has a cross-sectional area of A = 2.6 in.? Assume a = 3.25

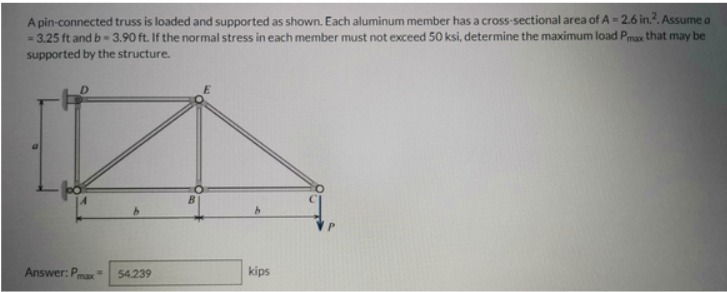

A pin-connected truss is loaded and supported as shown. Each aluminum member has a cross-sectional area of A = 2.6 in.? Assume a = 3.25 ft and b - 3.90 ft. If the normal stress in each member must not exceed 50 ksi, determine the maximum load Pmax that may be supported by the structure. E Answer: Prux 54.239 kips

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
