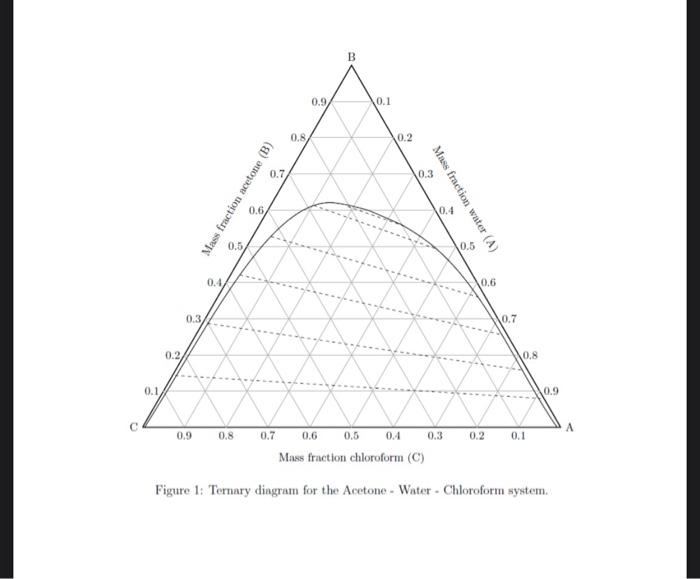

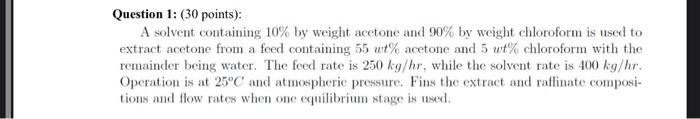

a Question 1: (30 points): A solvent containing 10% by weight acetone and 90% by weight chloroform is used to extract acetone from a feed containing 55 wt% acetone and 5 wt% chloroform with the remainder being water. The feed rate is 250 kg/hr, while the solvent rate is 400 kg/hr. Operation is at 25C and atmospheric pressure. Fins the extract and raflinate composi- tions and flow rates when one equilibrium stage is used B 0.9 0.1 0.8 0.2 0.7 10.3 Mass fraction acetone (B) 0.6 Mass fraction water (A) 0.4 0.5 0.5 0.47 0.6 0.3% 0.7 0.2 0.8 0.1 0.9 A 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 Mass fraction chloroform (C) Figure 1: Ternary diagram for the Acetone - Water - Chloroform system
