Question: A rectangular column b h = 5 0 0 m m 8 0 0 m m is subjected to a design load N d =

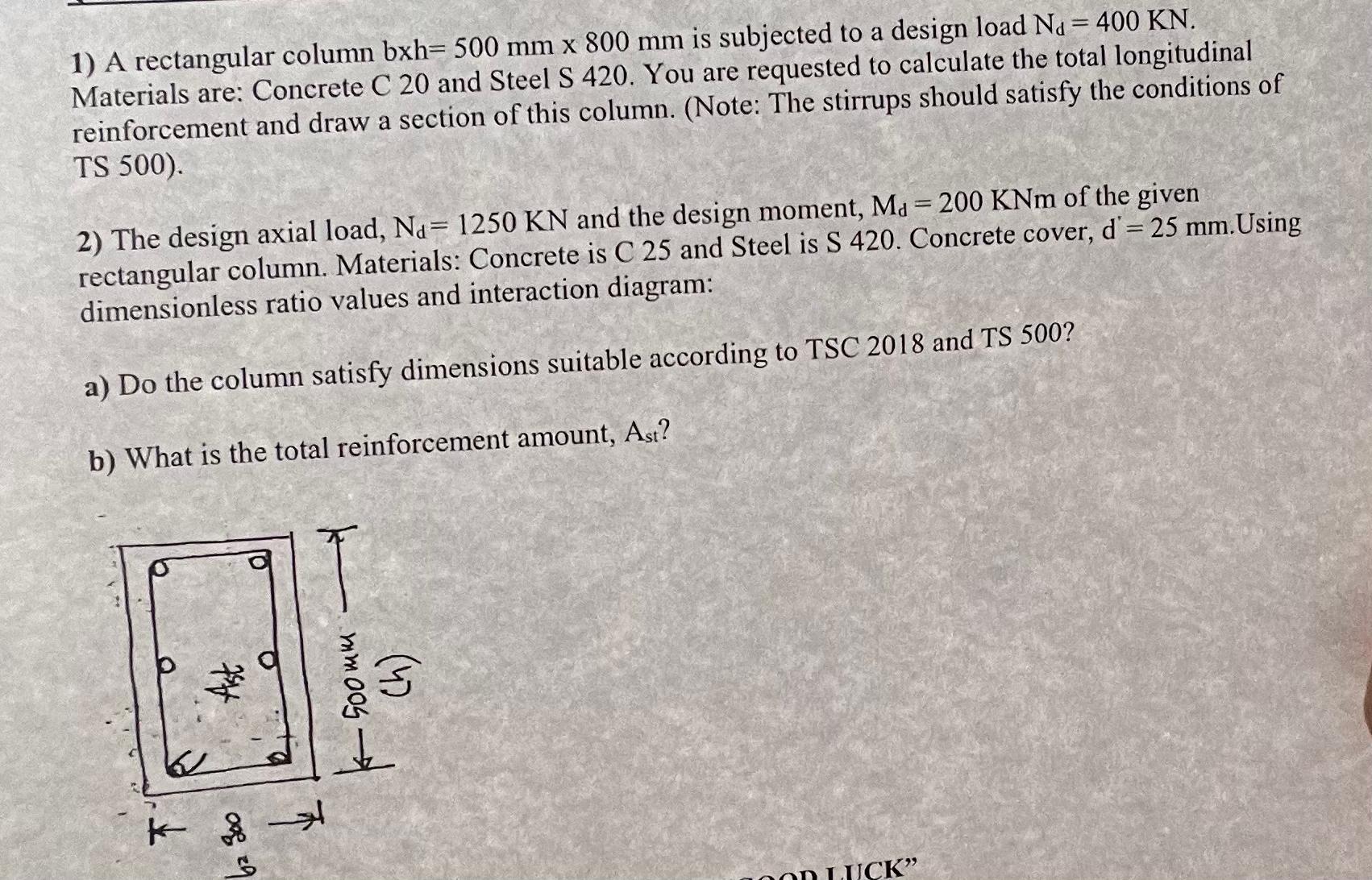

A rectangular column bh=500mm800mm is subjected to a design load Nd=400KN. Materials are: Concrete C 20 and Steel S 420. You are requested to calculate the total longitudinal reinforcement and draw a section of this column. (Note: The stirrups should satisfy the conditions of TS 500).
The design axial load, Nd=1250KN and the design moment, Md=200KNm of the given rectangular column. Materials: Concrete is C25 and Steel is S420. Concrete cover, d'=25mm.Using dimensionless ratio values and interaction diagram:
a) Do the column satisfy dimensions suitable according to TSC 2018 and TS 500?
b) What is the total reinforcement amount, Ast?
A rectangular column b h = 5 0 0 m m 8 0 0 m m is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
