Question: A rectangular single - reinforced beam with a cross - section as shown in the figure 1 , and its tensile steel bars are 6

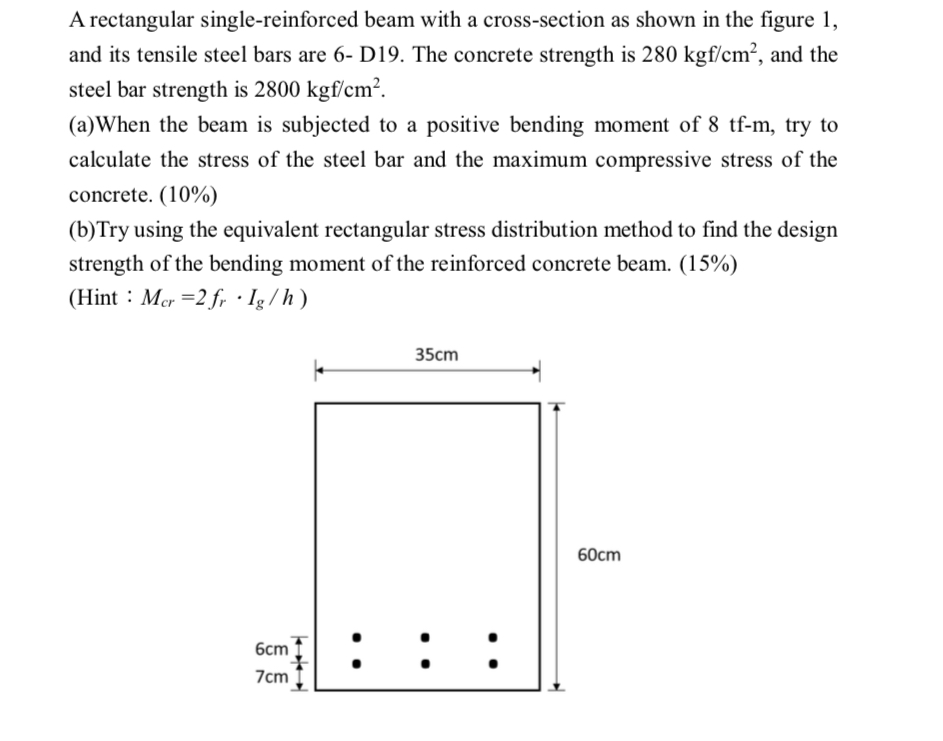

A rectangular single-reinforced beam with a cross-section as shown in the figure 1, and its tensile steel bars are 6- D19. The concrete strength is 280kgfcm2, and the steel bar strength is 2800kgfcm2.
(a)When the beam is subjected to a positive bending moment of 8tf-m, try to calculate the stress of the steel bar and the maximum compressive stress of the concrete. (10%)
(b)Try using the equivalent rectangular stress distribution method to find the design strength of the bending moment of the reinforced concrete beam. (15%)
(Hint : Mcr=2fr*Igh)
A rectangular single - reinforced beam with a
